Public Address

110-120 Marine/Industrial and Hazardous Area Loudspeakers

  • Explosion-Proof Series
  • 8 watt, 110dBa output
  • 15 watt, 116dBa output
  • 25 watt, 123dBa output
  • Approved for Zone 1 IIB and IIC
  • CE Compliant
  • ATEX certified
  • Integrated Speaker Monitoring and remote Tapping (I.S.M.T.)
  • IEC Certified (25 watt versions)

  • Marine/Industrial Series
  • 8 watt, 114dBa output
  • 15 watt, 118dBa output
  • 25 watt, 125dBa output
  • CE Compliant
  • Integrated Speaker Monitoring and remote Tapping (I.S.M.T.)

Federal Signal's model 110-120 Series Loudspeakers are designed for use in industrial public address and general alarm applications, where ATEX certification is required. The 110-120 Series Loudspeakers are available in either an ATEX Zone 1 explosion-proof version or a CE compliant, Marine-grade Industrial version.

Model 110-120 Series Loudspeakers are available in three different configurations, from 8 watts to 25 watts, to provide an appropriate amount of sound for the ambient environment. Each speaker is transformer coupled to fine tune the sound output for each application, and balance the audio load. Available audio inputs are 100Vrms, 70Vrms and 8 Ohm.

Mounting is provided by a stainless-steel ratcheted mounting bracket that locks the sounder in position at a specific angle without slipping. The bottom surface of the mounting bracket also contains three mounting holes, to adapt to a variety of surfaces.

The 110-120 Series Loudspeakers are rated for IP66/67 through the use of a neoprene "O" ring seal. All exterior cast aluminum surfaces are finished in powder coat paint and external hardware is manufactured from stainless steel to resist corrosion.

Special Considerations

  • Contact us to design a system that meets your specific requirements

Models

Part # Description Shipping Weight Net Weight
Call Us Toll-Free: (877) 268-3700

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

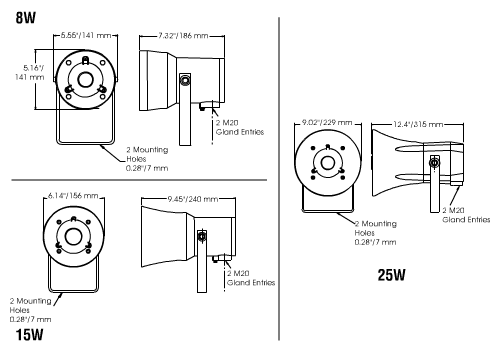

Diagrams

Explosion-Proof Rated Power

SPL@1kHz (Full power @ 1 meter)
8W-IIB 8W-IIC 15W-IIB 15W-IIC 25W-IIB
110dBa 106dBa 116dBa 112dBa 123dBa

SPL@1kHz (1-watt @ 1 meter)
8W-IIB 8W-IIC 15W-IIB 15W-IIC 25W-IIB
110dBa 106dBa 116dBa 112dBa 123dBa

Marine Rated Power

SPL@1kHz (Full power @ 1 meter)
8W 15W 25W
114dBa 118dBa 125dBa

SPL@1kHz (1-watt @ 1 meter)
8W 15W 25W
104dBa 106dBa 107dBa

Specifications

Frequency Range - Explosion-Proof

110 Series (8W): 600-4000 Hz

110 Series (15W):  390-4500 Hz

120 Series (25W):  350-4000 Hz

Frequency Range - Marine

110 Series (8W):  500-8000 Hz

110 Series (15W):  390-8500 Hz

120 Series (25W):  300-3700 Hz

Ambient Temperature Range - Explosion-Proof

T4: -20ºC to +70ºC

T5:  -20ºC to +55ºC

T6:  -20ºC to +40ºC

Ambient Temperature Range - Marine T4:  -20ºC to +70ºC
Dispersion Angle

Short Horn Series, 8W - 180º

Standard Horn Series, 15W - 120º

120 Horn Series, 25W - 120º

Type 8/15/25 Watt dual entry
Gland Entries

2 x M20 x 1.5 mm



Cable Terminations 6A, 1.5 mm conductors
Mounting Stainless steel bracket (not painted)
Material Body and horn - marine grade aluminum alloy
Audio Input 100 volt, 70 volt and 8 ohms
Net Weight

8W Short Horn Series - 6.6 lbs (3.0 kg)

15W Series - 7.1 lbs (3.2 kg)

25W Series - 14.1 lbs (6.4 kg)

Shipping Dimensions

8W/15W - 29 x 29 x 30 cm

25W - 32 x 30 x 38 cm

Specifications

110 Series, 8 and 15-Watt

Baseefa 03ATEX0688X - II2G EExdIIBT4 (T6)

Baseefa 03ATEX0689X - II2G EExdIICT4 (T6)

120 Series, 25-Watt

Nemko 05ATEX1036 - II2G EExd IIBT4 (T6)

IEC - IEC ExNMO4.0002

Marine Electromagnetic compatibility to EN 61000-6-1,2,3,4: 2001
Standards

EN50014:1997 + A1:1999 + A2 :1999

EN50018:2000 + A1, EN500019:2000

CE

EMC to EN 61000-6-1,2,3,4:2001

LVD to EN 60065

Ingress Protection - Explosion-Proof

8W/15W - IP66 & IP67-EN60529

25W - IP66 & IP67-EN60529

Ingress Protection - Marine IP66 & IP67-EN60529
