154XST Hazardous Location Supervised Warning Light
- Available in 24VDC
- Four wires and supervisory diode
- Five dome colors
- 10,000-hour high-intensity strobe
- 3/4-inch NPT pipe mount
- Dome guard included
- Type 4X, IP66 enclosure
- Marine Rated
- Supervisable 4-wire power circuit
- CSFM Approved
- UL and cUL Listed
Federal Signal's Model 154XST hazardous location strobe light provides 80 high-intensity flashes per minute. This warning light is available in 24VDC with a 4-wire supervisable power circuit for fire alarm and suppression supervised control panels.
The Model 154XST strobe light is UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; and Class III.

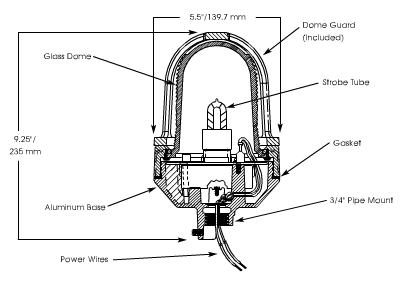

The 154XST meets Type 4X water-tight, dust-tight, and corrosion-resistant requirements; constructed to IP66. This hazardous location warning light has an aluminum base, coated for corrosion-resistance that is ready for mounting on a 3/4-inch pipe. The Dome Guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts. The 154XST contains a diode and four wire leads for use in fire alarm applications.
The 154XST has an effective candela (ECP) of 165 and a 520,000 peak candela. It is available in five dome colors, including amber, blue, clear, green and red.
Federal Signal's rugged 154XST strobe warning light is specifically designed for hazardous locations or corrosive environments where a very bright visual signal is required. This warning light can be used for plant evacuation or other communication needs.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 154XST-012-024A | Strobe, 12-24VDC 4-wire supervised, hazardous location, amber | 4.5 lbs. | 3.8 lbs. | Add to Quote > |
| 154XST-012-024B | Strobe, 12-24VDC 4-wire supervised, hazardous location, blue | 4.5 lbs. | 3.8 lbs. | Add to Quote > |
| 154XST-012-024C | Strobe, 12-24VDC 4-wire supervised, hazardous location, clear | 4.5 lbs. | 3.8 lbs. | Add to Quote > |
| 154XST-012-024G | Strobe, 12-24VDC 4-wire supervised, hazardous location, green | 4.5 lbs. | 3.8 lbs. | Add to Quote > |
| 154XST-012-024R | Strobe, 12-24VDC 4-wire supervised, hazardous location, red | 4.5 lbs. | 3.8 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Series C Glass Dome & Ring Assembly, Amber | K8449078C-01 | Add to Quote > |
| Series C Glass Dome & Ring Assembly, Blue | K8449078C-02 | Add to Quote > |
| Series C Glass Dome & Ring Assembly, Clear | K8449078C-04 | Add to Quote > |
| Series C Glass Dome & Ring Assembly, Green | K8449078C-03 | Add to Quote > |
| Series C Glass Dome & Ring Assembly, Red | K8449078C | Add to Quote > |
| PC Assembly, 12-24VDC | K2001173A | Add to Quote > |
| Strobe Tube | K149122B | Add to Quote > |
| Gasket | K8449080B | Add to Quote > |
| Guard | K8449090B | Add to Quote > |
Agency
| Listed By California State Fire Marshall (CSFM) | |
|---|---|
| Misc. devices/control unit accessories | 7300_0811_136.pdf |
Specs
| Voltage | 24VDC |
|---|---|
| Mount | 3/4" NPT pipe |
| Operating Current | 0.60 Amps |
| Dome Colors | Amber Blue Clear Green Red |
| Dome Guard | Included |
| Operating Temperature Min. | -67 F |
| Operating Temperature Max. | 150 F |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 10,000 Hours |
| Flash Rate/Minute | 80 |
| Peak Candela | 520,000 |
| Effective Candela | 165 |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP66 |
| Height | 9.25 IN |
| Diameter | 5.5 IN |
