Visual Signals

304X SelecTone® Explosion-Proof Audible Signaling Device

  • Available in 24VDC
  • Built-in gain control
  • 4-wire supervisable power circuit
  • IP 65, NEMA 4X Approved
  • UL Listed and CSFM Approved

The Federal Signal Model 304X and 314X Explosion Proof Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both models are compatible with fire alarm, voice evacuation, suppression supervised control panels, and power boosters.

These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the VRMS of the EVAC panel.

The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a diecast aluminum housing. Dust- and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with gray powder coat paint. A heavy-duty swivel mount bracket allows the installer to direct the output effectively.

The 304X and 314X are UL Listed for Class I, Division 1, Groups B, C and D.

The rugged construction and high output of the Model 304X and 314X make them ideal for use in harsh environments with high ambient noise levels. Both models feature an internal gain control for adjustment to suit area.

Special Considerations

  • Tone Card (UTM)
  • Specify Connector Kit for use in systems
    • Supervised Connector Kit (300CKS)
    • 25Vrms Connector Kit (AM25CK)

Models

Part # Description Ship Weight Net Weight
304X-024 SelecTone, 24VDC, explosion proof 22.8 lbs. 15.4 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Amplifier Assembly K2005355A-01 Add to Quote >
Projector Assembly K8593100A Add to Quote >
Driver Assembly K8593097A Add to Quote >
Cover Assembly K8593098A Add to Quote >
Mounting Bracket Assembly K8593071A Add to Quote >
Connector, 4-Position K140340B Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal devices for use in hazardous locations UGKZ_E12629.pdf
Audible signal appliances ULSZ_E4813.pdf
Listed By California State Fire Marshall (CSFM)
Audible signal device 7135_0811_003.pdf
NEMA 4X Test Report (ETL)
Standard for Enclosures for Electrical Equipment, Form A ETL_3107796-001A.pdf
Standard for Enclosures for Electrical Equipment, Form B ETL_3107796-001B.pdf

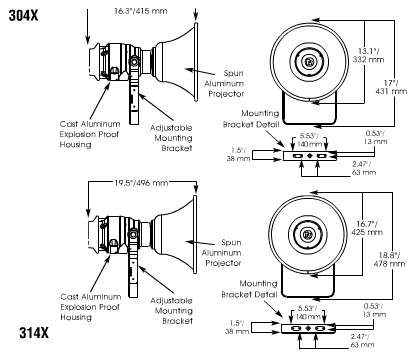

Diagrams

Specs

Voltage 24VDC
Mount Swivel Bracket
Operating Current 0.7 Amps
Operating Temperature Min. -40 F
Operating Temperature Max. 150 F
Decibels per UL1480

91 at 10 Feet

101 at 1 Meter

Decibels on Axis

110 at 10 Feet

120 at 1 Meter

Standby Current 0.13 Amps
Enclosure Rating NEMA 4X
Ingress Protection (IP) IP65
Height 17 IN
Width 13.1 IN
Depth 16.3 IN
