Fire Alarms

FB24ST Fireball® Supervised Strobe Warning Light

  • Available in 24VDC
  • Four wires and supervisory diode
  • Six dome colors
  • 10,000 hour strobe tube
  • Integrated 1/2" pipe and surface mount
  • Type 4X, IP66 enclosure
  • CSFM Approved
  • CSA Certified
  • UL and cUL Listed

Federal Signal's brightest and most compact strobe light, the Fireball® Supervised Warning Light emits a powerful "lightning bolt" flash of light. Approximately five inches tall and four inches in diameter and rated at 300 effective candela, the FB24ST is an economical solution to a wide variety of stationary requirements. The Fireball is available in 24VDC. All models are UL and cUL Listed, CSA Certified and CSFM Approved.

The 24VDC FB24ST features a voltage in-rush limiting PCB design that provides greater compatability with control systems and less electrical interference with in-rush sensitive devices.

The FB24ST features a unique dome that twists off easily for quick dome and lamp replacements. The newly redesigned base features an integrated 1/2-inch pipe mount boss as well as the three holes required for surface mount configurations. Black epoxy paint is electrostatically applied to the base for superior corrosion resistance. The Fireball dome and base design provides a watertight, dust-tight and corrosion resistant Type 4X rating.

The FB24ST contains a supervisory diode and four wire leads, for use in fire alarm applications.

The FB24ST can be used in any application where a superior visual signal is needed. It is especially effective in the warning of industrial hazards, process control, status indication and in areas with high ambient noise levels.

Federal Signal's Fireball Supervised Strobe is a very low-maintenance warning light for industrial applications where a vibration-resistant light is required to signal an emergency or process status.

Special Considerations

  • Mounting brackets not rated for Type 4X

Models

Part # Description Ship Weight Net Weight
FB24ST-024A Strobe, 24VDC, 4-wire, amber, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >
FB24ST-024B Strobe, 24VDC, 4-wire, blue, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >
FB24ST-024C Strobe, 24VDC, 4-wire, clear, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >
FB24ST-024G Strobe, 24VDC, 4-wire, green, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >
FB24ST-024R Strobe, 24VDC, 4-wire, red, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LCMB2 Mounting bracket, corner 2.5 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. Add to Quote >

Replacement Parts

Description Part #
Dome, Amber K8550320A Add to Quote >
Dome, Blue K8550320A-01 Add to Quote >
Dome, Clear K8550320A-02 Add to Quote >
Dome, Green K8550320A-03 Add to Quote >
Dome, Red K8550320A-04 Add to Quote >
Dome, Magenta K8550320A-05 Add to Quote >
PC Assembly, 12-24VDC K2001202C Add to Quote >
Strobe Tube, Series A, A1, A2, A3 Call Us: (877) 268-3700 Add to Quote >
Strobe Tube, Series A4, A5, B K8107177A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signalling appliances UEES_E162485.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signalling appliances certified for Canada UEES7_E162485.pdf
Certified by CSA International
Signal appliances, systems 4812_05_1194086.pdf
Listed By California State Fire Marshall (CSFM)
Miscellaneous device, control unit accessories 7300_0811_135.pdf

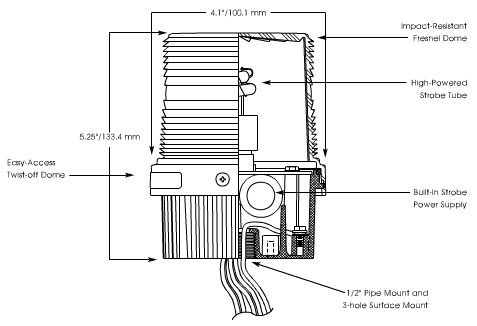

Diagrams

Specs

Voltage 24VDC
Mount

1/2" Pipe

Surface

Operating Current 0.70 Amps at 24VDC (2.0 amps, in-rush)
Dome Colors

Amber

Blue

Clear

Green

Magenta

Red

Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Light Source/Lamp Style Strobe Tube
Flash Rate/Minute. 80 at 24VDC
Peak Candela 1,000,000
Effective Candela 300
Lamp Life 10,000 Hours
Ingress Protection (IP) IP66
Enclosure Rating Type 4X
Height 5.25 IN
Diameter 4.1 IN
