Fire Alarms

FB24STHI Fireball® Supervised Hearing Impaired Strobe Warning Light

  • Available in 24VDC
  • Four wires and supervisory diode
  • Clear dome
  • 10,000 hour strobe tube
  • Integrated 1/2" pipe mount and surface mount
  • Type 4X, IP66 enclosure
  • In-rush protected
  • UL1971 Listed
  • UL Listed and CSFM Approved

Federal Signal's brightest and most compact strobe light, this supervised FireBall® emits a powerful "lightning bolt" flash of light. Approximately five inches tall and four inches in diameter and rated at 300 effective candela, the FB24STHI is economical and effective. The Fireball is available in 24VDC, this model is UL Listed and CSFM Approved.

The FB24PSTHI features a voltage in-rush limiting PCB design that provides greater compatability with control systems and panels and less electrical interference with in-rush sensitive devices.

The FB24STHI features a clear dome that twists off easily for quick dome and lamp replacements. The newly redesigned base features an integrated 1/2" pipe mount boss as well as the three holes required for surface mount configurations. Black epoxy paint is electrostatically applied to the base for superior corrosion resistance. The Fireball dome and base design provides a watertight, dust-tight and corrosion resistant Type 4X rating.

The Fireball FB24STHI contains a supervisory diode and four wire leads, for use in fire alarm applications. This strobe is UL 1971 listed, for hearing impaired applications.

Special Considerations

  • Mounting brackets not rated for Type 4X

Models

Part # Description Ship Weight Net Weight
FB24STHI-024C Strobe, 24VDC, 4-wire, hearing impaired, clear, in-rush limited 1.7 lbs. 1.45 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LCMB2 Mounting bracket, corner 2.5 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. Add to Quote >

Replacement Parts

Description Part #
PC Assembly, 12-24VDC K2001202C Add to Quote >
Strobe Tube K8107177A Add to Quote >
Dome, Clear K8550320A-02 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Signalling appliances and equipment for the hearing impaired UUKC_S5427.pdf
Listed By California State Fire Marshall (CSFM)
Fire alarm devices for the hearing impaired 7125_0811_132.pdf

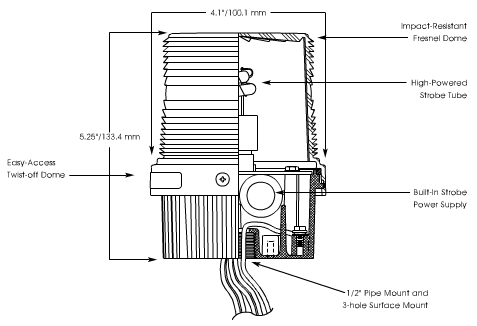

Diagrams

Specs

Voltage 24VDC
Mount

1/2" Pipe

Surface

Operating Current 0.70 Amps at 24VDC (2.0 amps, in-rush)
Dome Colors Clear
Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Light Source/Lamp Style Strobe Tube
Flash Rate/Minute. 80
Peak Candela 1,000,000
Effective Candela 300
Lamp Life 10,000 Hours
Ingress Protection (IP) IP66
Enclosure Rating Type 4X
Height 5.25 IN
Diameter 4.1 IN
