Intercoms

ECHO E-DS Desktop or Wall Mount Intercom Stations

  • Handset or speakerphone duplex voice communication
  • ADA compliant volume levels and controls
  • Large LCD display with directory scroll
  • Requires only one twisted pair of wires
  • Speed dial and auto conference
  • Caller ID
  • Dedicated paging buttons (All Call and Priority)

Federal Signal Models E-DST (tactile keypad), E-DSM (membrane keypad), E-DSMG (membrane keypad with gooseneck mic), are NEMA 1 handset intercom stations that may be used on a desktop or surface / wall mount application to provide speaker phone or private handset duplex two-way voice communication with LCD visual status display. The station's digital signal processor instantly adjusts speakerphone volume levels to compensate for high ambient noise while providing high-speed connections and clear, crisp voice quality from anywhere in the room. The large, easy-to-read LCD display provides information to identify the name and number of each calling party, provides a name and number directory and an on-line help menu.

The Models E-DST, E-DSM, E-DSMG Handset Call Stations can call any other station in the system and are capable of full duplex communication using the handset. Since the Digital Central Exchange can process calls simultaneously, there is no dial tone or delay. After keying in the two digits, the call can be connected immediately. The keypad provides tactile and audible feedback for positive activation. The LCD display at each Master station shows the called and calling station ID. A station may be preset to any of four levels of privacy for receiving calls; Non-Private, Semi-Private, Full Privacy, and DND (Do Not Disturb). Volume for both the handset and speaker phone can be adjusted.

The compact console unit is equipped with a handset, panel speaker and electret microphone. A standard 16 button keypad and LCD display with 2 lines of 16 characters is provided. The unit is intended for indoor use.

Models

Part # Description Shipping Weight Net Weight
E-DST Desk or wall mounted station with tactile keypad 2.5 lbs. 2.2 lbs. Add to Quote >
E-DSM Desk or wall mounted station with membrane keypad 2.5 lbs. 2.2 lbs. Add to Quote >
E-DSMG Desk or wall mounted station with gooseneck microphone instead of panel microphone 2.5 lbs. 2.2 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
ECHO-FOTI Fiber Optic Interface   Add to Quote >

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

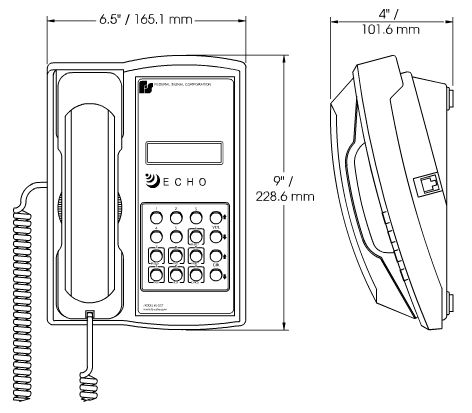

Diagrams

Specs

Voltage 24VDC nominal (line driven from ECHO control)
Current Idle 25mA
Current Connected 100mA
Microphone Type Electret
Microphone Sensitivity -70dB
Audio Output 1.0 watts
Housing Material ABS flame-retardant
LCD Display 2 lines, 16 characters/line
Volume Control Via Keypad - 30dB in ten steps
Keypad Construction

Model E-DST, Grey conductive rubber

Model E-DSM, Membrane keys

Line Attenuation 24dB at 160kb/s maximum
Loop Resistance 170 Ohm maximum
Distance 2 km (1.2 miles) maximum
Cable One twisted pair, non-shielded
Cable Termination Plug-in screw terminal, non-polar
Height 10.5 IN
Width 7 IN
Depth 7.5 IN
