Intercoms

ECHO E2 Class I, Division 2, Digital Intercom Stations

  • All stainless steel construction
  • Super-bright LED indicator
  • Tactile keypad
  • Headset, gooseneck microphone and handset options
  • Output to powered loudspeaker
  • Designed for Type 4X, IP66
  • UL and cUL Listed

Federal Signal Model E2 ECHO Intercom Stations provide safe and efficient two-way voice communications in large and small ECHO Digital Intercom Systems. The E2 ECHO Station is designed and approved for use in Hazardous Areas including Class 1, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; and Class III.

The E2 ECHO station provides instantaneous high-speed connections and clear, crisp digital voice quality. Each station offers single-button all call, priority emergency paging, group paging, speed dial, conference call, and relay output.

Any station can call any other station(s) in an ECHO Digital Intercom System. With the headset or gooseneck microphone options, each is capable of hands-free voice communication. Because the ECHO Digital Central Exchange provides 30 channels of simultaneous communication, calls are processed and connected immediately without dial tone or delay.

The E2 Station keypad is designed to provide tactile and audible feedback (via external powered loudspeaker) for positive activation. Each station may be programmed for four levels of privacy for receiving calls; non-private, semi-private, full privacy and do-not-disturb. Volume for voice and signal levels are easily adjusted on the keypad.

Each E2 Station is constructed of heavy duty, corrosion-resistant stainless steel, equipped with weatherproof keypads, and are rated for use in Type 4X dust- and water-tight applications.

Models

Part # Description Shipping Weight Net Weight
E2-HND Intercom station, hazardous area, with handset 14.8 lbs. 9.9 lbs. Add to Quote >
E2-SM Intercom station, hazardous area, with stubby microphone   14.8 lbs. 9.9 lbs. Add to Quote >
E2-HDS Intercom station, hazardous area, with headset  14.8 lbs. 9.9 lbs. Add to Quote >
E2-HND-4X E2-HND in 4X enclosure (IP66)     Add to Quote >
E2-SM-4X E2-SM in 4X enclosure (IP66)     Add to Quote >
E2-HDS-4X E2-HDS in 4X enclosure (IP66)     Add to Quote >
E2-GM1 Intercom station, hazardous area, with gooseneck microphone, 260mm 14.8 lbs. 9.9 lbs. Add to Quote >
E2-GM2 Intercom station, hazardous area, with gooseneck microphone, 440mm 14.8 lbs. 9.9 lbs. Add to Quote >
E2-GM3 Intercom station, hazardous area, with gooseneck microphone, 590mm 14.8 lbs. 9.9 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

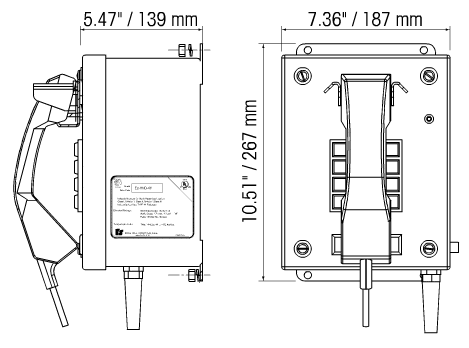

Diagrams

Specs

Voltage 24VDC nominal (line driven from ECHO control)
Ingress Protection (IP) IP66
Enclosure Rating Type 4X
Operating Temperature Min. -40 F
Operating Temperature Max. 65 F
Current Idle 25mA
Current Connected 100mA
Microphone Type Handset and Stubby Microphone - Dynamic
Housing Material

Handset - Moulded polycarbonate/ABS blend

Stubby Mic Enclosure - Stainless steel

Handset Cord Stainless steel
Microphone Sensitivity -54dB (Stubby Microphone)
Audio Output 2.7 Vrms, 1k load
Volume Control Via Keypad - 30dB in ten steps
Line Attenuation 24dB at 160kb/s maximum
Loop Resistance 170 Ohm maximum
Distance 2 km (1.2 miles) maximum
Cable One twisted pair, non-shielded
Cable Entries 3 x Ø22mm (.88") Hole
Cable Termination Plug-in screw terminal, non-polar
Relay Switching Capacity 3A at 240VAC
Height 20.63 IN
Width 14.13 IN
Depth 13.63 IN
