DCFCTBD Two-Way Digital Controller for 2001 and Eclipse Sirens

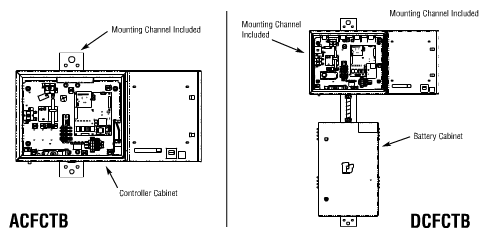

The ACFCTBD and DCFCTBD models are two-way, battery-operated status monitoring siren controllers for use with the 2001 and Eclipse siren series. These controllers interface with an off-the-shelf two-way radio transceiver and communicate to the base control via FSK signaling. In addition to FSK, the controllers will simultaneously decode any combination of Single-Tone, Two-Tone Sequential, or DTMF formats for activation. This makes the two-way controllers compatible with virtually any existing siren control system.

All ACFCTBD and DCFCTBD models come equipped with two (2) independent relay outputs that can be programmed to activate with various codes. There are four (4) landline inputs and four (4) local push buttons for activation, plus cancel. Activation codes, relay timing, and optional warning sounds are programmed into the unit through a standard RS232 serial port or over-the-air from the central control point.

The ACTCFTBD and DCFCTBD models offer six (6) user programmable functions in addition to the five pre-set functions: ARM, DISARM, REPORT, GROWL TEST, and MASTER RESET. The controllers includes the necessary sensors and wiring to supply information on the following areas of operation: AC Power Status, Communications Status, Low Battery Voltage Indication, Siren Activation Current, Intrusion, and Siren Rotation.

The DCFCTBD models are available in VHF-high, and UHF bands using Motorola transceivers to provide two-way signaling capabilities. An optional transformer/rectifier, used for primary system power in an AC/DC configuration, is available when AC power with battery back-up is required.
