Outdoor Warning

SS2000 DTMF Siren Encoder/Decoder

  • LCD shows 4-line control and programming information
  • 18 "hot" command keys
  • Hundreds of available functions
  • Two-way unit automatically logs activity to printer output on command software
  • Desktop and 19" rack mount
  • Optional printer and activation via contact closure through SS Remote
  • Easy to program and use

Federal Signal's Model SS2000 is a versatile, user-friendly and economical siren controller that supports one-way communication with the option of two-way communications using DTMF or FSK encoding. Command sequences are programmable and stored in non-volatile memory chips for retention, even when electrical power is disrupted.

Power is supplied by a standard 120VAC wall outlet and can be backed up with a user supplied 12VDC battery and charger.

The Model SS2000 features a four-line backlit liquid crystal display (LCD), full DTMF keypad and 18 user-programmable function keys. Four LEDs are used to indicate the status of the optional printer, radio frequency (RF) carrier detection, key press and one miscellaneous function. A key lock is provided to secure the controller's key pad from unauthorized access.

As a status monitoring device for electronic sirens, the Model SS2000 or SS2000T monitors AC power, intrusion, amplifiers and drivers; operating current, charger, battery and audio A and B lines.

As a status monitoring device for mechanical sirens, the model SS2000 monitors AC power, intrusion, operating current, battery and rotation.

Federal Signal's Model SS2000T DTMF Encoder/Controller or SS200D FSK Encoder offer many extended benefits to any radio controlled signaling device. This unit automatically reports siren/power failures and electronically checks sirens through report-back systems, eliminating the need for personnel at siren sites.

Special Considerations

  • Specify model number from the following
    • 1-way control, desktop (SS2000)
    • 2-way control, rack mount (SS2000T for DTMF or SS2000D for FSK)
    • 1-way control, rack mount (SS2000R)
    • 2-way control, rack mount (SS2000TR for DTMF or SS2000DR for FSK)
  • Optional printer
  • Optional activation via contact closure (up to 20) (SS-REMOTE)
  • Call us for assistance in specifying an outdoor warning system

Models

Part # Description Shipping Weight
SS2000 One-Way, DTMF Encoder, Desk Mount 6 lbs.   Add to Quote >
SS2000D Two-Way, FSK Encoder, Desk Mount 6 lbs.   Add to Quote >
SS2000T Two-Way, DTMF Encoder, Desk Mount 6 lbs.   Add to Quote >

Accessories

Part # Description Shipping Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

Diagrams

Specs

Line Input 120VAC wall transformer
Battery Input 11.5 to 20.0VDC (overvoltage and reverse voltage protection)
Input Current 175mA standby, 250mA maximum
Operating Temperature 32°F to 122°F (0°C to 50°C)
Distortion <3% from pure sinewave
Emphasis Optional de-emphasis 6dB/octave
DTMF Format 3 to 20 digits
DTMF Timing 35/5 to 999/999 milliseconds (digit length/interdigit silence)
Display 80-character LCD display (4 lines x 20)
DTMF Decode Sensitivity 20dB signal/noise
Outputs:

3-DPDT (PTT, Audio and mic disconnect, spare)

1.25A at 24VDC

0.40 at 120VAC

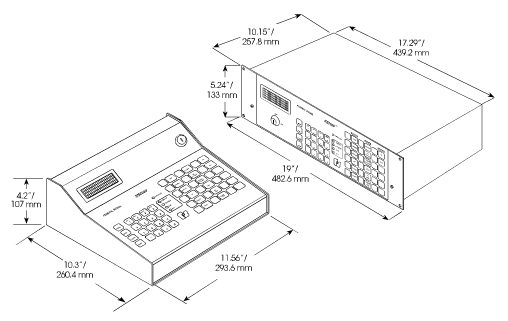

Dimensions:

Rack

Desktop


19.0" x 10.15" x 5.24" (482.6mm x 257.8mm x 133.0mm)
11.56" x 10.25" x 4.2" (293.6mm x 260.4mm x 107.0mm)

Weight:

Rack

Desktop


8.0 lbs (4.0 kg)

6.0 lbs (3.0 kg)
