Outdoor Warning

UV UltraVoice™ Electronic Siren Controller

  • One- or two-way siren control
  • Status monitoring
  • Seven warning tones
  • Public address
  • Digital pre-recorded voice messages
  • Landline, Ethernet (IP) or Radio Control
  • Pole or wall mount
  • Type 4 or optional Type 4X enclosure
  • UL and cUL Listed

The Federal Signal UltraVoice™ is designed to provide one- or two-way control of high-power electronic sirens such as the MOD or DSA, or to control indoor AudioMaster speaker systems. UltraVoice produces amplified audio signals including seven built-in warning tones, high-quality live public address, and pre-recorded voice messages.

The UltraVoice is housed in two cabinets. The control cabinet houses the control module and amplifiers. A separate vented cabinet houses the batteries. The standard cabinet for the UltraVoice is made from 5052-H32 grade aluminum. This control cabinet is also available in 304 or 316 stainless steel. The number of amplifiers and batteries (purchased separately) required by an UltraVoice Controller depends on the power required by the specific siren array or speaker system.

Two-way systems provide siren status to the control station and include a sensor package, radio transceiver and encoder/decoder. Computer controlled status monitoring of the following conditions is provided: AC Power, Battery Voltage, Charger Operation, Activation Current, Signal Line A and B, Mode of Operation, Quiet Test, Intrusion, and Local Activation.

UltraVoice units may be equipped with a programmable RF receiver for remote control using MSK, DTMF or Two-Tone Sequential protocols. Pre-recorded digital voice messages can be added by simply plugging in a four- or eight-minute IC chip. Windows®-based software is available that allows users to configure activation sequences.

Special Considerations

  • Specify model number, see list below
  • Specify radio control requirements
    • One-way or two-way; Low band, High band, UHF and Private Line
  • Specify protocol
    • DTMF, MSK, Two-Tone
  • Specify radio frequency
  • Specify number of 400-watt amplifiers required (Model UV400)
  • Specify accessories
    • Digital voice chips, 8 minutes
    • Customized tones available per quote
    • Solar charging system
    • FS-MWIN Windows® programming software (Two-tone and DTMF)
    • Antenna
    • SS2000 Encoder
    • Stainless steel or aluminum cabinets
    • HTR2 or HTR4 battery heaters
    • Commander Two-way digital programming and control software
    • MNC-MC Microphone
    • TB-LL Telco base, landline
  • Call us for assistance in specifying an outdoor warning system

Models

Part # Description Shipping Weight Net Weight
UV Controller, one-way 165 lbs.   Add to Quote >
UVTD Controller, two-way digital with radio control options      Add to Quote >
UVTD-IP Controller, IP enabled     Add to Quote >
UVTD-LL Controller, landline     Add to Quote >

Accessories

Part # Description
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal appliance, general signal UCST_E4813.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_ E4813.pdf

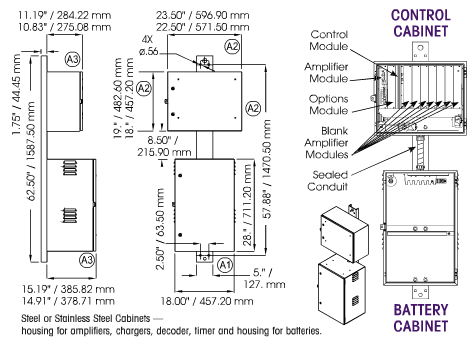

Diagrams

Specs

Power

Input Voltage 120/240±10%, 50/60Hz VAC single-phase
Input Current 7A Maximum
Operating Voltage 24VDC
Standby Current:

UV

UVT


100mA DC

600mA DC

Standby Time > 7 Days
Continuous Signalling Time 30 Minutes
Control Module
Signal Duration (auto reset) 3 Minutes
Microphone Input Impedance 10k ohms
Audio Distortion 1% THD Maximum
Maximum Load 600 ohms
Contact Closure (Min) 500 ms<1.0k ohms
Amplifier Module
Frequency Response (300 to 3 kHz) ±3dB (ref. 1kHz)
Output Voltage (Tone and PA) (to speaker drivers) 70Vrms
Input Impedance (per amplifier) 100k ohms
General
Operating Temperature* -22°F to 149°F (-30°C to 65°C)
Enclosures:

Control Cabinet

Battery Cabinet


Type 4 or 4X

Type 4 (vented)

Battery Requirements



Customer must provide necessary batteries. Call for assistance with specific system requirements.

Signal Information

Tone A/B Tone Frequency Range Sweep Rate (Seconds)
Wail 400/480-850/1020 13
Pulsed Wail 400/480-850/1020 1.5/13
Alternate Wail 400/480-850/1020 1.5/13
Steady 850/1020 N/A
Pulsed Steady 850/1020 1.5
Alternate Steady 850/1020 1.5
*The siren can operate throughout this temperature range provided the battery temperature is maintained at 0°F/-18°C or higher.
