Outdoor Warning

UVIC UltraVoice™ Indoor Controller

  • Landline, Ethernet (IP) or radio-control with two-way status monitoring
  • Public address
  • Seven standard tones
  • 70 Vrms audio output standard (25 Vrms optional)
  • 4 programmable relays, 600 ohm, line-level and 33 ohm audio outputs (with optional UVARM)
  • Type 1 enclosure
  • Up to 16 digitally stored messages standard (8 minute total storage capacity)
  • Batteries and local microphone included
  • Optional Windows® based activation and status monitoring software
  • UL and cUL Listed

The Federal Signal UltraVoice™ Indoor Controller, Model UVIC, is designed to deliver clean, clear, amplified audio to a network of speakers (sold separately), configured for indoor notification or evacuation. The UltraVoice Indoor Controller has been designed for high quality reproduction of live or pre-recorded voice and tone, providing the ability to automate testing and emergencies.

The UVIC is housed in a single Type 1 style cabinet, with provisions for up to two 400 Watt amplifiers (sold separately). Each controller requires 120VAC and contains two sealed lead-acid batteries, providing over 30 minutes of operation in the event power has been lost.

The UVIC may be either Landline activated or Radio controlled from a remote location. Landline activation can initiate one of the eight onboard functions by connecting a momentary dry contact closure (customer supplied) to the appropriate PC board mounted terminal block. These functions can contain a combination of tone and pre-recorded voice or Public Address. Public Address is available from the supplied microphone located inside the controller. If radio-control of the UVIC is desired, an optional Federal Signal Encoder Model SS2000D and base station radio (approved radio license required at time of order) must be added to the control package and is typically located where administrative control and activation resides. In either configuration, each function will remain active for 3 minutes as standard.

The UVIC controller is also compatible with our Federal Commander® Windows® based digital status monitoring and activation software to "point and click" activation and local indication of alarms or fault conditions. Available functions to be displayed on a computer screen or captured to a database or printer are: AC Power, Battery Voltage, Charger Operation, Activation Current, Amplifier Status, Quiet Test, Intrusion and Local Activation.

Ultravoice units may be equipped with a programmable RF receiver for remote control using MSK or DTMF protocols. Federal Commander Windows based software provides command and control for UltraVoice two-way products.

Special Considerations

  • Call the factory for assistance in specifying an outdoor warning system

Models

Part # Description Shipping Weight Net Weight
UVIC Indoor controller, no radio 200 lbs.   Add to Quote >
UVICH Indoor controller, two-way VHF (150-174) MHz     Add to Quote >
UVICU Indoor controller, two-way UHF (450-474) MHz     Add to Quote >
UVIC-IP Indoor controller, IP enabled     Add to Quote >
UVIC-LL Indoor controller, landline     Add to Quote >
UVICH240 Indoor controller, two-way VHF, 240VAC     Add to Quote >
UVICU240  Indoor controller, two-way UHF, 240VAC     Add to Quote >

Accessories

Part # Description
UV400 Amplifier, 400 watt    Add to Quote >
DVR Digital voice recording fee   Add to Quote >
DV480 Digital voice chip (8 minutes)   Add to Quote >
SFCD10 Fed. Commander 2-way status mon. software, 10 sites   Add to Quote >
SFCD25 Fed. Commander 2-way status mon. software, 11-25 sites   Add to Quote >
TB-LL Telco base, landline   Add to Quote >
UVARM UltraVoice audio relay module   Add to Quote >
UVIC25ST Step-down transformer, 68-25Vrms   Add to Quote >

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
NO DOCUMENTS FOUND

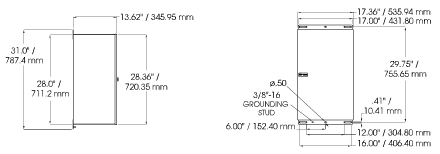

Diagrams

Specs

Input Voltage

120 or 240VAC +/- 10%, 50/60 Hz Single-phase
Input Current 5A AC, 45A DC Max
Operating Voltage 24VDC
Standby Time 3 days with 5 minutes in reserve
Continuous Signal Time 30 minutes
Operating Temperature Min. -30 F
Operating Temperature Max. 65 F
Enclosure Rating Type 1
Net Weight, No Amplifiers 64.55 lbs.
Shipping Weight, Batteries 58.97 lbs.
Height 31 IN
Width 17.36 IN
Depth 13.62 IN

Optional Equipment

Model Description
UV400

Amplifier: 400-watts

Audio Output: 70Vrms (nominal)

DVR Digital voice recording fee
SFCD10 Federal Commander® two-way status monitoring software, 10 sites
SFCD25 Federal Commander two-way status monitoring software, 11-25 sites
UVARM

UltraVoice audio relay module:

Balanced 33-Ohm Output: Adj. from 0.2-1.9Vrms

Balanced 600-Ohm Output: Adj. from 0.2-3.0Vrms or -12 to +11 dBa

Single Ended Line-Level: Adj. from 0.2-3.0Vrms

Relay Outputs: 4 programmable relays rated 30VDC, 15A

UVIC25ST

Step-down transformer, 68-25Vrms:

25Vrms step down transformer occupies one amplifier slot making the UVIC capable of a maximum of 400-watts in this configuration
