Public Address

AM30 AudioMaster® Public Address 30 Watt Speaker

  • 8 ohm
  • 30 watt
  • Constant directivity horn design
  • Omni-directional swivel mount
  • Type 3R enclosure

The Federal Signal AM30 is an 8 ohm constant directivity, re-entrant speaker that is ideal for most public address or paging applications. The constant directivity horn design provides excellent sound coverage throughout the typical frequency range of speech. The AM30 is molded from impact-resistant, beige acrylic-styrene-acrylonitrile (ASA). The unique omni-directional swivel mount of this speaker allows the unit to be pointed anywhere within a 360º half-sphere of area.

The driver of the AM30 employs a rugged phenolic diaphragm, a 1.5-inch diameter voice coil, and "rim centered" ferrite magnet structure for long life and durability under extreme operating conditions. A 12-inch connecting cable, phased and color coded, is provided for connecting the AM30.

The AM30 can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial grade public address system.

Models

Part # Description Shipping Weight Net Weight
AM30 Speaker, 30 watt, swivel mount 4.6 lbs. 4.1 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

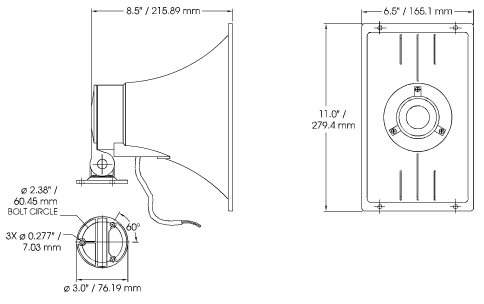

Diagrams

Specs

Mount Omni-Directional Swivel
Power Handling 30 Watt
Frequency Response 400 - 6500Hz
Impedance 8 ohm
Beam Width 80º x 50º
Decibel Output

112 at 10 Feet

122 at 1 Meter

Enclosure Rating Type 3R
Height 8.9 IN
Width 12.1 IN
Depth 12.2 IN
