Public Address

AM30T AudioMaster® Public Address 30 Watt Speaker

  • Transformer Coupled
  • 25, 70, or 100Vrms
  • 30 watt
  • Omni-directional swivel mount
  • Constant directivity horn design
  • Type 3R enclosure

The Federal Signal AM30T is a transformer-coupled, constant directivity, re-entrant speaker ideal for most public address or paging applications. The constant directivity design provides excellent sound coverage throughout the frequency range of speech. The AM30T is molded from impact resistant, beige acrylic-styrene-acrylonitrile (ASA). The omni-directional swivel mount of this speaker allows the unit to be pointed anywhere within a 360º half-sphere of area.

Power handling for the AM30T is 30 watts with transformer taps of 30, 15, 7.5, 3.7 and 1.8. A screwdriver operated power switch is used to select the desired tap. This unit is designed for use in 25, 70, and 100Vrms distributed systems.

The driver of the AM30T employs a rugged phenolic diaphragm, a 1.5-inch diameter voice coil, and "rim centered" ferrite magnet structure for long life and durability under extreme operating conditions. A 12-inch connecting cable, phased and color coded, is provided for connecting the AM30T.

The AM30T can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial grade public address system.

Models

Part # Description Shipping Weight Net Weight
AM30T Speaker, 30 watt, transformer coupled, swivel mount 5.8 lbs. 5.3 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

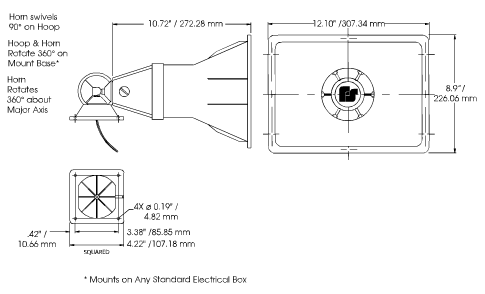

Diagrams

Specs

Mount Omni-Directional Swivel
Power Handling 30 Watt
Frequency Response 400 - 6500Hz
Transformer

25Vrms

70Vrms

100Vrms

Power Taps

15, 7.5, 3.7, 1.8 @ 25Vrms

30, 15, 7.5, 3.7, 1.8 @ 70Vrms

30, 15, 7.5, 3.7 @ 100Vrms

Beam Width 80º x 50º
Decibel Output

112 at 10 Feet

122 at 1 Meter

Enclosure Rating Type 3R
Height 8.9 IN
Width 12.1 IN
Depth 12.2 IN
