Public Address

AMR6 AudioMaster® 8 Watt Ceiling Speaker

  • Transformer coupled for 25, 70 or 100Vrms systems
  • 8 watt
  • Flexible mounting
  • Back box and tile bridge included

The Federal Signal Model AMR6 is a high-quality ceiling speaker for public address and music in industrial, municipal and commercial office environments.

Power handling for the AMR6 is eight watts with transformer taps at 8, 4, 2 and 1 watts. The AMR6-2570K operates in 25 or 70Vrms systems and the AMR6-100K operates in 100Vrms systems.

The speaker is designed to mount flush in a ceiling or wall cavity. Adjustable "L" shaped clamps offer the flexibility of mounting to any surface thickness from 1/4" to 1-1/2". The AMR6 is suitable for use in air handling spaces.

Construction materials were selected to provide years of service in demanding conditions. The speaker frame is flame-retardant ABS that meets Underwriter's Laboratories requirements for Flame Class V-0, 5VA. The speaker cone is constructed of polypropylene and the surround material is a phenolic impregnated cloth, rather than the traditional paper structures.

The AMR6 offers a wide frequency response of 110Hz to 20,000Hz that reproduces a full range of voice, music and electronically generated tones. To achieve these impressive results both a woofer and a neodymium tweeter are utilized. Neodymium is a rare earth metal known for high energy in compact sizes.

Special Considerations

  • Specify model number and Vrms of system (25/70Vrms or 100Vrms)
  • Back Box requires the Tile Bridge for installation

Models

Part # Description Shipping Weight Net Weight
AMR6-2570K Speaker, 6" round ceiling, 25/70V, includes tile bridge and back box 4.75 lbs. 3.06 lbs. Add to Quote >
AMR6-100K Speaker, 6" round ceiling, 100V, includes tile bridge and back box 4.75 lbs. 3.06 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

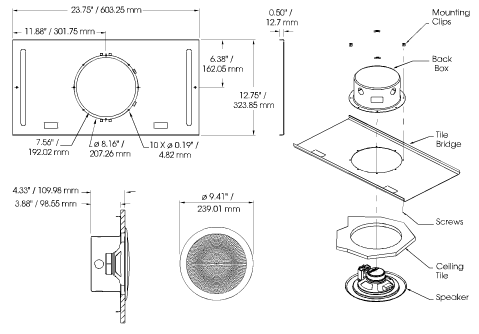

Diagrams

Specs

Mount

Ceiling

Wall

Power Handling 8 Watt
Frequency Response 110 - 20,000Hz
Transformer

25 Vrms (Model AMR6-2570K)

70 Vrms (Model AMR6-2570K)

100 Vrms (Model AMR6-100K)

Power Taps

1.1

2

4

8

Decibel Output

81 Using 25Vrms at 10 Feet

91 Using 25Vrms at 1 Meter

85 Using 70 or 100Vrms at 10 Feet

95 Using 70 or 100Vrms at 1 Meter

Operating Temperature Min. 32 F
Operating Temperature Max. 120 F
Diameter 9 IN
Depth 4.9 IN
