Public Address

AMSF-25 AudioMaster® Public Address Flush and Swivel Mount 25 Watt Speaker

  • 8 ohm
  • 25 watt
  • Surface and flush mount
  • Type 4X, IP66 enclosure
  • UL Listed

The Federal Signal Models AMSF-25 and AMSS-25 are heavy-duty, 8-ohm speakers for use in public address or paging systems. These speakers are designed to reproduce full-range voice communication. Both speakers are constructed of spun aluminum. The speaker wiring connections are enclosed in a dust-tight and moisture-proof, gasketed rear cover. All external surfaces are sealed with a metallic gray powder coat paint.

The AMSF-25 is a flush mount unit that is ideal for use in walls and cabinets. The AMSS-25 has an adjustable mounting bracket that pivots in a 90º arc for attaching to walls, cabinets or vehicle roofs. These speakers are appropriate for marine applications.

The AMSF-25 and the AMSS-25 can be used with the AudioMaster® CTS series amplifiers and the AudioRouter™ to complete an industrial grade public address system.

Models

Part # Description Shipping Weight Net Weight
AMSF-25 Speaker, 25 watt, flush mount, weatherproof 5.1 lbs. 4.6 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

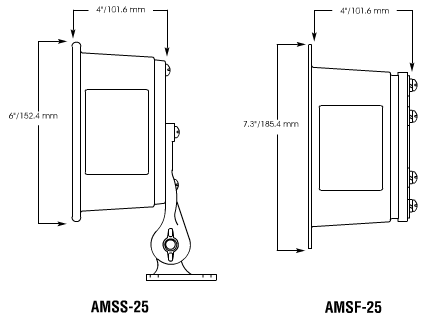

Diagrams

Specs

Mount Flush
Power Handling 25 Watt
Frequency Response 800 - 5000Hz
Impedance 8 ohm
Beam Width 90º
Decibel Output

107dB at 10 Feet

117dB at 1 Meter

Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Operating Temperature Min. -50 F
Operating Temperature Max. 150 F
Depth 4 IN
Diameter 7.3 IN
