Visual Signals
121X Explosion-Proof Rotating Light
- Available in 24VDC and 120VAC
- Five lens colors
- 3/4-inch pendant mount standard; other options available
- Optional dome guard
- Type 4X, IP66 enclosure
- UL and cUL Listed, CSA Certified, Marine Rated

Federal Signal's Model 121X rotating light flashes 90 times per minute and produces a 360º visual signal. This explosion-proof light has an incandescent lamp and is available in five lens colors - amber, blue, clear, green and red.
The Model 121X is UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; Class I, Division 2, Groups A, B; and Class III. The 121X is CSA Certified, Marine Rated and contructed to Type 4X, IP66 standards.
This corrosion-resistant unit's copper-free aluminum housing is finished with a powder epoxy. All exposed hardware is constructed of 316 grade stainless steel.

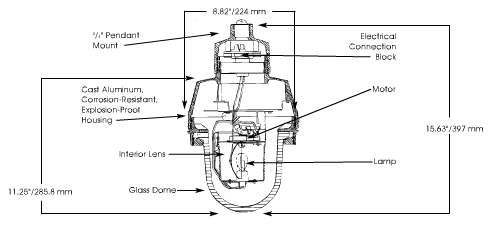

The 121X uses a synchronous motor to drive a parabolic reflector around an incandescent lamp. This results in a 360º rotating beam which is concentrated in a horizontal plane.
The 121X features a spring-clip mounted lens for quick access when inspecting or relamping. A pendant mount is supplied, and a ceiling mount and 90º wall mount are available options. Installation is simple; with the mounting box in place, the fixture is threaded onto the mounting box, making the electrical connection. Electrical continuity is made when five threads are engaged.
Federal Signal's rugged 121X Warning Light is designed for explosion-proof applications and/or corrosive environments. It is ideal for use in indoor and outdoor areas such as oil rigs, mines, refineries, and chemical plants.
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
121X-024ASC | Explosion-proof rotating light, 24VDC, amber | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-024BSC | Explosion-proof rotating light, 24VDC, blue | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-024CSC | Explosion-proof rotating light, 24VDC, clear | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-024GSC | Explosion-proof rotating light, 24VDC, green | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-024RSC | Explosion-proof rotating light, 24VDC, red | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-120ASC | Explosion-proof rotating light, 120VAC, amber | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-120BSC | Explosion-proof rotating light, 120VAC, blue | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-120CSC | Explosion-proof rotating light, 120VAC, clear | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-120GSC | Explosion-proof rotating light, 120VAC, green | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
121X-120RSC | Explosion-proof rotating light, 120VAC, red | 18.9 lbs. | 14.75 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
CMXC | Mounting kit, ceiling, 27XST & 121X | 4.3 lbs. | Add to Quote > |
WMXC | Mounting kit, 90º wall, 27XST and 121X | 5.4 lbs. | Add to Quote > |
DGXC | Dome guard, 27XST & 121X | 1.35 lbs. | Add to Quote > |
Replacement Parts
Description | Part # | |
---|---|---|
Exterior Dome Assembly, Clear | K8444C271A-01 | Add to Quote > |
Interior Lens, Amber | K8444242A | Add to Quote > |
Interior Lens, Blue | K8444242A-01 | Add to Quote > |
Interior Lens, Clear | K8444242A-02 | Add to Quote > |
Interior Lens, Green | K8444242A-03 | Add to Quote > |
Interior Lens, Red | K8444242A-04 | Add to Quote > |
24VDC Incandescent Lamp | K8107A041 | Add to Quote > |
120VAC Incandesent Lamp | K8444A173A | Add to Quote > |
Amber Lens & Mechanism, 24VDC | K8444269A | Add to Quote > |
Blue Lens & Mechanism, 24VDC | K8444269A-01 | Add to Quote > |
Clear Lens & Mechanism, 24VDC | K8444269A-02 | Add to Quote > |
Green Lens & Mechanism, 24VDC | K8444269A-03 | Add to Quote > |
Red Lens & Mechanism, 24VDC | K8444269A-04 | Add to Quote > |
Amber Lens & Mechanism, 120VAC | K8444277A | Add to Quote > |
Blue Lens & Mechanism, 120VAC | K8444277A-01 | Add to Quote > |
Clear Lens & Mechanism, 120VAC | K8444277A-02 | Add to Quote > |
Green Lens & Mechanism, 120VAC | K8444277A-03 | Add to Quote > |
Red Lens & Mechanism, 120VAC | K8444277A-04 | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Signal appliances, miscellaneous for use in hazardous locations | UJPX_E84580.pdf |
Visual signal devices, Marine | UXUB_E84580.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Miscellaneous for use in hazardous locations, certified for Canada | UJPX7_E84580.pdf |
Certified by CSA International | |
---|---|
Signal appliances, miscellaneous, for hazardous locations | 4818_03_LR11170_22.pdf |
Specs
Mount | 3/4" Pendant Optional Wall Mount Kit Optional Ceiling Mount Kit |
---|---|
Voltage | 24VDC 120VAC 60Hz |
Operating Current | 1.05 Amps at 24VDC 0.33 Amps at 120VAC |
Light Source/Lamp Style | Incandescent |
Lamp Life | 800 Hours |
Flash Rate/Minute | 90 |
Candela | 2,350 at 24VDC 1,800 at 120VAC |
Operating Temperature Min. | -31 F |
Operating Temperature Max. | 104 F |
Enclosure Rating | Type 4X |
Ingress Protection (IP) | IP66 |
Dome Guard | Sold Separately |
Dome Colors | Amber Blue Clear Green Magenta Red |
Height | 15.63 IN |
Diameter | 8.82 IN |
