Visual Signals
131DST Starfire® Strobe Warning Light
- Available in 12-24VDC, 120VAC and 240VAC
- Five dome colors
- 10,000 hour strobe tube
- Single or double flash strobe
- 1/2-inch pipe mount
- Indoor/outdoor use
- Type 3R, IP45 enclosure (Dome-up orientation)
- UL and cUL Listed, CSA Certified

Federal Signal's Starfire® strobe warning lights are available in single-flash (131ST) and double-flash (131DST) models. Through precise timing of the strobe flash, the double flash unit produces 1,200 effective candela; the single flash unit produces 1,000 effective candela.
Starfire models are available in 12-24VDC, 120VAC (50/60Hz) and 240VAC (50/60Hz). All units are less than nine inches high and six inches in diameter, but powerfully effective.

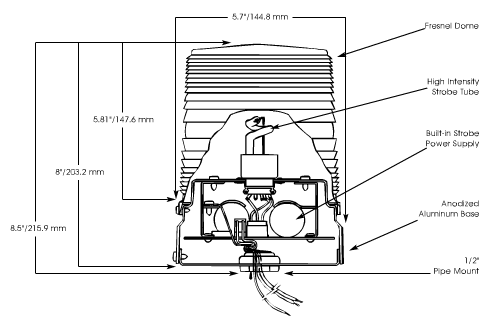

Starfire strobe warning lights contain their own strobe power supply in the base of the light. The strobe flash tube is mounted in an eight-pin octal socket base. The fresnel dome stands up to impact and abuse and is available in amber, blue, clear, green and red. The base of the light is made of corrosion-resistant anodized aluminum. Each Starfire model comes with a standard 1/2-inch pipe mount. An optional surface mount can be ordered.
Because of its convenient size and intense light output, the Starfire strobes can be used for multiple applications. Excellent for in-plant use, the Models 131ST/DST warn of hazardous conditions, mark dangerous areas (either permanently or temporarily) and mounts on lift trucks, cranes and other moving devices. These powerful strobes can be used on emergency, utility, maintenance or any other vehicle requiring emergency warning.
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
131DST-012-024A | Double strobe, 12-24VDC, pipe mount, amber | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-012-024B | Double strobe, 12-24VDC, pipe mount, blue | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-012-024C | Double strobe, 12-24VDC, pipe mount, clear | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-012-024G | Double strobe, 12-24VDC, pipe mount, green | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-012-024R | Double strobe, 12-24VDC, pipe mount, red | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-120A | Double strobe, 120VAC, pipe mount, amber | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-120B | Double strobe, 120VAC, pipe mount, blue | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-120C | Double strobe, 120VAC, pipe mount, clear | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-120G | Double strobe, 120VAC, pipe mount, green | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-120R | Double strobe, 120VAC, pipe mount, red | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-240A | Double strobe, 240VAC, pipe mount, amber | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-240B | Double strobe, 240VAC, pipe mount, blue | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-240C | Double strobe, 240VAC, pipe mount, clear | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-240G | Double strobe, 240VAC, pipe mount, green | 3.4 lbs. | 2 lbs. | Add to Quote > |
131DST-240R | Double strobe, 240VAC, pipe mount, red | 3.4 lbs. | 2 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
LCMB2 | Mounting bracket, corner | 2.5 lbs. | Add to Quote > |
LWMB2 | Mounting kit, wall mount | 2.95 lbs. | Add to Quote > |
K8444A211B | Surface mount kit | Add to Quote > |
Replacement Parts
Description | Part # | |
---|---|---|
Dome, Amber | K8422B428A-01 | Add to Quote > |
Dome, Blue | K8422B428A-02 | Add to Quote > |
Dome, Clear | K8422B428A | Add to Quote > |
Dome, Red | K8422B428A-03 | Add to Quote > |
Dome, Green | K8422B428A-04 | Add to Quote > |
Dome, Magenta | K8422B428A-05 | Add to Quote > |
Strobe Tube | K8107178A | Add to Quote > |
Surface Mount Kit | K8444A211B | Add to Quote > |
PC Assembly, 12-24VDC | K2001265D | Add to Quote > |
PC Assembly, 120VAC | K200865G | Add to Quote > |
PC Assembly, 240VAC | K200865G-01 | Add to Quote > |
Dome Gasket | K8444A193A | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Visual signalling appliances | UEES_E162485.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
Certified by CSA International | |
---|---|
Signal appliances, systems | 4812_05_LR5835_46.pdf |
Specs
Mount | 1/2" Pipe Optional Surface Mount Kit |
---|---|
Voltage | 12-24VDC 120VAC 240VAC |
Operating Current | 3.0 - 1.9 Amps from 12-24VDC 0.60 Amps at 120VAC 0.30 Amps at 240VAC |
Light Source/Lamp Style | Strobe Tube |
Lamp Life | 10,000 Hours |
Flash Rate/Minute | 80 Double Flashes |
Peak Candela | 1,000,000 |
Effective Candela | 1,200 |
Operating Temperature Min. | -31 F |
Operating Temperature Max. | 150 F |
Enclosure Rating | Type 3R |
Ingress Protection (IP) | IP45 |
Dome Colors | Amber Blue Clear Green Red |
Height | 8.5 IN |
Diameter | 5.7 IN |
