Visual Signals
141ST Electraflash® Strobe Warning Light
- Available in 12VDC, 24VDC and 120VAC
- Four dome colors
- 4,000 hour strobe tube
- Surface mount or integrated 1/2-inch pipe mount
- Indoor/outdoor use
- Type 3R enclosure
- UL Listed and CSA Certified
Federal Signal's Electraflash® 141ST is an economical strobe light designed for a variety of industrial uses. This compact warning light is less than six inches tall and six inches in diameter. Models are available in four fresnel dome colors, including amber, blue, green and red. All models are UL Listed for indoor/outdoor use and the 120VAC models are CSA Certified.
The Model 141ST is available in 12VDC, 24VDC and 120VAC, and includes a removable strobe mechanism. The 12VDC and 24VDC units have three holes for flat surface mounting. The 120VAC version comes ready to mount on a 1/2-inch pipe. Optional wall mounting brackets (Model LWMB2) or corner mounting brackets (Model LCMB2) are available for the 120VAC unit.
Federal Signal's Electraflash strobe lights are designed for both indoor and outdoor industrial environments. The unit's convenient size and intense light output make it ideal for use on maintenance vehicles, fork lifts, and other material handling equipment. The economical Model 141ST effectively alerts of hazardous conditions or dangerous areas.
Federal Signal's Electraflash strobe warning light is an affordable visual signal which is ideally suited for light duty applications.
Special Considerations
- Accessories are available for 120VAC model only
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 141ST-012A | Strobe, 12VDC, amber | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-012B | Strobe, 12VDC, blue | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-012R | Strobe, 12VDC, red | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-024A | Strobe, 24VDC, amber | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-024B | Strobe, 24VDC, blue | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-024G | Strobe, 24VDC, green | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-024R | Strobe, 24VDC, red | 1.3 lbs. | 0.8 lbs. | Add to Quote > |
| 141ST-120A | Strobe, 120VAC, amber | 1.4 lbs. | 0.9 lbs. | Add to Quote > |
| 141ST-120B | Strobe, 120VAC, blue | 1.4 lbs. | 0.9 lbs. | Add to Quote > |
| 141ST-120G | Strobe, 120VAC, green | 1.4 lbs. | 0.9 lbs. | Add to Quote > |
| 141ST-120R | Strobe, 120VAC, red | 1.4 lbs. | 0.9 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| LCMB2 | Mounting bracket, corner | 2.5 lbs. | Add to Quote > |
| LWMB2 | Mounting kit, wall mount | 2.95 lbs. | Add to Quote > |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Dome, Amber | K8263079A | Add to Quote > |
| Dome, Blue | K8263079A-01 | Add to Quote > |
| Dome, Green | K8263079A-03 | Add to Quote > |
| Dome, Red | K8263079A-02 | Add to Quote > |
| PC Assembly, 12VDC | K2001201B | Add to Quote > |
| PC Assembly, 24VDC | K2001201B-01 | Add to Quote > |
| PC Assembly, 120VAC | K2001195D | Add to Quote > |
| Strobe Tube | K149128A | Add to Quote > |
| Pipe Mount Kit | K8263093A | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, systems | 4812_05_1355525.pdf |
Specs
| Mount | Surface Mount for 12 and 24VDC Models 1/2" Pipe Mount for 120VAC Model |
|---|---|
| Voltage | 12VDC 24VDC 120VAC 50/60Hz |
| Operating Current | 0.18 Amps at 12VDC 0.08 Amps at 24VDC 0.06 Amps at 120VAC |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 4,000 Hours |
| Flash Rate/Minute | 80 |
| Peak Candela | 100,000 |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 3R |
| Dome Colors | Amber Blue Green Red |

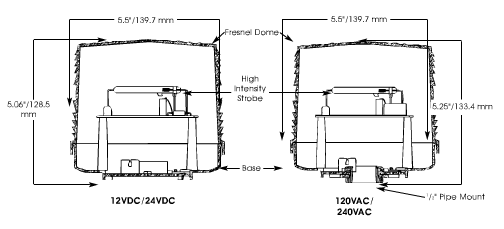

| Diameter | 5.5 IN |
| Height, DC Models | 5.06 IN |
| Height, AC Models | 5.25 IN |
