Visual Signals

191XL Flashing LED Hazardous Location Warning Light with XLT™

  • XLT™ Technology
  • Available in 24VAC/DC and 120-240VAC
  • Five lamp/lens colors
  • Flashing mode standard, configurable to Steady-burn
  • 60,000 hour, vibration resistant LED lamp
  • 3/4 inch pipe mount
  • Dome guard included
  • Type 4X, IP66 Enclosure, Marine Listed
  • UL and cUL Listed

The model 191XL is a hazardous location flashing signal light that features the super bright LED array with XLT™, eXtreme Light Technology. The unit is available in 24VAC/DC or 120-240VAC and five colors - amber, blue, clear, green and red. The 191XL comes standard in flashing mode and is field configurable to steady burn mode for maximum functionality.

The Model 191XL has been certified by UL as meeting Type 4X watertight and corrosion-resistant requirements, and IP66 rated. This hazardous location warning light has an aluminum base ready for mounting on a 3/4 inch pipe. The base features electrostatically applied (e-coated) epoxy paint for corrosion-resistance. A dome guard fits over the glass dome to protect it against accidental collision with moving equipment, such as a forklift. The outer glass dome and LED pairing are available in five colors - amber, blue, clear, green and red.

Federal Signal's super bright LED array used in the 191XL with XLT inside produces intense light output and 60,000 hours of service. Increased shock and vibration resistance add to this unit's rugged industrial portfolio of features.

The 191XL is UL Listed for Class I, Division 2, Groups A, B, C and D; Class II Division 1, Groups E, F and G; and Class III.

Models

Part # Description Ship Weight Net Weight
191XL-024A Flashing light, LED, 24VAC/DC, haz. loc., amber 4.25 lbs. 4 lbs. Add to Quote >
191XL-024B Flashing light, LED, 24VAC/DC, haz. loc., blue 4.25 lbs. 4 lbs. Add to Quote >
191XL-024C Flashing light, LED, 24VAC/DC, haz. loc., clear 4.25 lbs. 4 lbs. Add to Quote >
191XL-024G Flashing light, LED, 24VAC/DC, haz. loc., green 4.25 lbs. 4 lbs. Add to Quote >
191XL-024R Flashing light, LED, 24VAC/DC, haz. loc., red 4.25 lbs. 4 lbs. Add to Quote >
191XL-120-240A Flashing light, LED, 120-240VAC, haz. loc., amber 4.25 lbs. 4 lbs. Add to Quote >
191XL-120-240B Flashing light, LED, 120-240VAC, haz. loc., blue 4.25 lbs. 4 lbs. Add to Quote >
191XL-120-240C Flashing light, LED, 120-240VAC, haz. loc., clear 4.25 lbs. 4 lbs. Add to Quote >
191XL-120-240G Flashing light, LED, 120-240VAC, haz. loc., green 4.25 lbs. 4 lbs. Add to Quote >
191XL-120-240R Flashing light, LED, 120-240VAC, haz. loc., red 4.25 lbs. 4 lbs. Add to Quote >
191XL-277A Flashing LED light, 277VAC, haz. loc., amber 4.25 lbs. 4 lbs. Add to Quote >
191XL-277B Flashing LED light, 277VAC, haz. loc., blue 4.25 lbs. 4 lbs. Add to Quote >
191XL-277C Flashing LED light, 277VAC, haz. loc., clear 4.25 lbs. 4 lbs. Add to Quote >
191XL-277G Flashing LED light, 277VAC, haz. loc., green 4.25 lbs. 4 lbs. Add to Quote >
191XL-277R Flashing LED light, 277VAC, haz. loc., red 4.25 lbs. 4 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
PC Board Assembly, 24VDC K2005455A Add to Quote >
PC Board Assembly, 120/240VAC K2005416A Add to Quote >
LED Array, Amber K147169A-06 Add to Quote >
LED Array, Blue K147169A-07 Add to Quote >
LED Array, Clear K147169A-10 Add to Quote >
LED Array, Green K147169A-08 Add to Quote >
LED Array, Red K147169A-09 Add to Quote >
Series C Glass Dome & Ring Assembly, Amber K8449078C-01 Add to Quote >
Series C Glass Dome & Ring Assembly, Blue K8449078C-02 Add to Quote >
Series C Glass Dome & Ring Assembly, Clear K8449078C-04 Add to Quote >
Series C Glass Dome & Ring Assembly, Green K8449078C-03 Add to Quote >
Series C Glass Dome & Ring Assembly, Red K8449078C Add to Quote >
Gasket K8449080B Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signal devices for use in hazardous locations UJTK_E207119.pdf
Visual signal devices, Marine UXUB_E84580.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signal devices for use in hazardous locations certified for Canada UJTK7_E207119.pdf

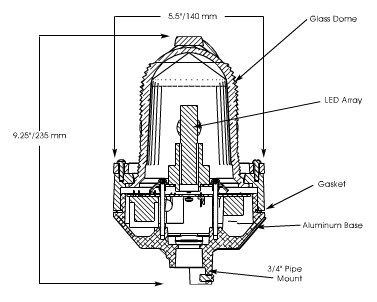

Diagrams

Specs

Mount 3/4" Pipe
Voltage

24VAC/VDC

120VAC

240VAC

Operating Current

0.38 Amps at 24VAC/DC

0.21 Amps at 120VAC

0.13 Amps at 240VAC

In-rush Current

1.75 Amps, 5.0mS, at 24VAC/DC

2.0 Amps, 0.25mS, at 120VAC & 240VAC

Light Source/Lamp Style LED Array
Flash Rate/Minute 60
Operating Temperature Min. -58 F
Operating Temperature Max. 150 F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Dome Guard Included
Dome Colors

Amber

Blue

Clear

Green

Red

Height 9.25 IN
Diameter 5.5 IN
