Visual Signals
225X Electraray® Hazardous Location Rotating Warning Light
- Available in 120VAC
- Five dome colors
- 25 watt incandescent lamp
- 1/2-inch pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- UL and cUL Listed
The new Federal Signal Electraray® Model 225X is a compact, economical rotating warning light designed for a variety industrial applications. This innovative dome design, with a single screw allows quick and easy access for inspection and relamping.
The Federal Signal Electraray 225X features a silicone rubber gasket that provides a water-resistant seal between the dome and the black poly-coated base. The injection molded reflector rotates around a 25 watt lamp producing 90 flashes per minute. It is available in five dome colors (amber, blue, clear, green and red) and is UL listed for Class I, Division 2, Group A, B, C and D; Class II, Division 2, Groups F and G; and Class III. The Electraray 225X is ready to mount on a 1/2" pipe.
The Electraray 225X design makes it a good choice for a multitude of indoor and outdoor applications. It is designed for permanent mounting where 120VAC, 50/60Hz is available. This particular light provides an effective means of supplementing audible signaling devices in hazardous environments.
Federal Signal's affordable Electraray rotating warning light is specifically designed for use in hazardous locations or where corrosive materials are present.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 225X-120A | Rotating light, 120VAC, hazardous location, amber | 2.7 lbs. | 2 lbs. | Add to Quote > |
| 225X-120B | Rotating light, 120VAC, hazardous location, blue | 2.7 lbs. | 2 lbs. | Add to Quote > |
| 225X-120C | Rotating light, 120VAC, hazardous location, clear | 2.7 lbs. | 2 lbs. | Add to Quote > |
| 225X-120G | Rotating light, 120VAC, hazardous location, green | 2.7 lbs. | 2 lbs. | Add to Quote > |
| 225X-120R | Rotating light, 120VAC, hazardous location, red | 2.7 lbs. | 2 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| LCMB2 | Mounting bracket, corner | 2.5 lbs. | Add to Quote > |
| LWMB2 | Mounting kit, wall mount | 2.95 lbs. | Add to Quote > |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Dome, Amber | K8444D219C-03 | Add to Quote > |
| Dome, Blue | K8444D219C-01 | Add to Quote > |
| Dome, Green | K8444D219C-02 | Add to Quote > |
| Dome, Red | K8444D219C | Add to Quote > |
| Dome, Clear | K8444D219C-04 | Add to Quote > |
| Incandescent Lamp, 120VAC | K149123A | Add to Quote > |
| Motor, 120VAC | K8241A030-02 | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signal devices for use in hazardous locations | UJTK_E207119.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signal devices for use in hazardous locations certified for Canada | UJTK7_E207119.pdf |
Specs
| Mount | 1/2" Pipe |
|---|---|
| Voltage | 120VAC 50/60Hz |
| Operating Current | 0.22 Amps at 120VAC |
| Light Source/Lamp Style | 25-Watt Incandescent |
| Lamp Life | 1,000 Hours |
| Flash Rate/Minute | 90 |
| Candela | 1,000 |
| Operating Temperature Min. | -40 F |
| Operating Temperature Max. | 104 F |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP66 |
| Dome Colors | Amber Blue Clear Green Red |

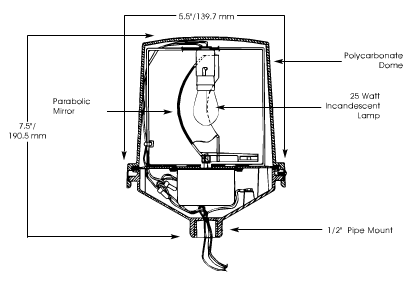

| Height | 7.5 IN |
| Diameter | 5.5 IN |
