225XL Electraray® Hazardous Location LED Flashing Warning Light with XLT™
- XLT™ Technology
- Available in 24VAC/DC and 120VAC-240VAC
- Five lens/lamp colors
- Flashing mode standard, configurable to Steady-burn
- 60,000 hour, vibration-resistant LED lamp
- 1/2-inch pipe mount
- Type 4X, IP66 enclosure, Marine Listed
- UL and cUL Listed

The model 225XL is a hazardous location flashing signal light that features the super bright LED array with XLT™, eXtreme Light Technology. The unit is available in 24VAC/DC or 120VAC-240VAC self detecting voltage and five colors -- amber, blue, clear, green and red. The 225XL comes standard in flashing mode and is field configurable to steady burn mode for maximum functionality.

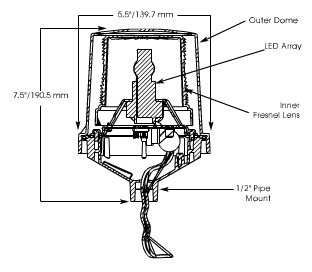

The Model 225XL has been certified by UL as meeting Type 4X watertight and corrosion-resistant requirements, and is rated for Division 2 applications. This hazardous location warning light has a black polyurethane-coated base and the inner Fresnel lens is available in five colors - amber, blue, clear, green and red. The clear polycarbonate outer dome can be quickly removed for access while changing the lamp or inspecting the unit.
Federal Signal's super bright LED array used in the 225XL with XLT inside produces intense light output and 60,000 hours of service. Increased shock and vibration resistance add to this unit's rugged industrial portfolio of features.
The 225XL is UL Listed for Class I, Division 2, Groups A, B, C and D; Class II Division 2, Groups F and G; and Class III.
The Federal Signal Model 225XL is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a vibration-resistant visual signal is needed.
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
225XL-024A | Flashing LED light, haz. loc., 24VAC/DC, amber | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-024B | Flashing LED light, haz. loc., 24VAC/DC, blue | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-024C | Flashing LED light, haz. loc., 24VAC/DC, clear | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-024G | Flashing LED light, haz. loc., 24VAC/DC, green | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-024R | Flashing LED light, haz. loc., 24VAC/DC, red | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-120-240A | Flashing LED light, haz. loc., 120-240VAC, amber | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-120-240B | Flashing LED light, haz. loc., 120-240VAC, blue | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-120-240C | Flashing LED light, haz. loc., 120-240VAC, clear | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-120-240G | Flashing LED light, haz. loc., 120-240VAC, green | 4 lbs. | 3.2 lbs. | Add to Quote > |
225XL-120-240R | Flashing LED light, haz. loc., 120-240VAC, red | 4 lbs. | 3.2 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
NOT APPLICABLE |
Replacement Parts
Description | Part # | |
---|---|---|
Dome, Clear | K8444D219C-04 | Add to Quote > |
Dome, Amber | K8550292A-02 | Add to Quote > |
Dome, Blue | K8550292A-01 | Add to Quote > |
Dome, Clear | K8550292A | Add to Quote > |
Dome, Green | K8550292A-04 | Add to Quote > |
Dome, Red | K8550292A-03 | Add to Quote > |
PC Board Assembly, 24VDC | K2005455A | Add to Quote > |
PC Board Assembly, 120/240VAC | K2005416A | Add to Quote > |
LED Array, Amber | K147169A-06 | Add to Quote > |
LED Array, Blue | K147169A-07 | Add to Quote > |
LED Array, Clear | K147169A-10 | Add to Quote > |
LED Array, Green | K147169A-08 | Add to Quote > |
LED Array, Red | K147169A-09 | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Visual signal devices for use in hazardous locations | UJTK_E207119.pdf |
Visual signal devices, Marine | UXUB_E84580.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Visual signal devices for use in hazardous locations certified for Canada | UJTK7_E207119.pdf |
Specs
Mount | 1/2" Pipe |
---|---|
Voltage | 24VAC/VDC 120VAC 240VAC |
Operating Current | 0.38 Amps at 24VAC/DC 0.21 Amps at 120VAC 0.13 Amps at 240VAC |
In-rush Current | 1.75 Amps, 5.0mS, at 24VAC/DC 2.0 Amps, 0.25mS, at 120VAC and 240VAC |
Light Source/Lamp Style | LED Array |
Lamp Life | 60,000 Hours |
Flash Rate/Minute | 60 |
Operating Temp. Min. | -58 F |
Operating Temp. Max. | 150 F |
Enclosure Rating | Type 4X |
Ingress Protection (IP) | IP66 |
Dome Colors | Amber Blue Clear Green Red |
Height | 7.5 IN |
Diameter | 5.5 IN |
