Visual Signals

225XST Electraray® Hazardous Location Strobe Warning Light

  • 12-24VDC, 120VAC and 240VAC
  • Six lens colors
  • 10,000 hour, high-intensity strobe tube
  • 1/2-inch pipe mount
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure (Dome up orientation)
  • UL and cUL Listed, CSA Certified

Federal Signal's Electraray® Model 225XST hazardous location strobe light provides 80 high intensity flashes per minute. This warning light is available in 12-24VDC, 24VDC, 120VAC and 240VAC.

The Model 225XST has been certified by UL as meeting Type 4X water tight and corrosion resistant requirements; constructed to IP66 (in dome up orientation). This hazardous location warning light has a black polyurethane coated base and the inner fresnel lens is available in six colors (including magenta). The clear polycarbonate outer dome can be quickly removed for easy access to inspect the unit or change the lamp. The 225XST has an effective candela of 240 and a 580,000 peak candela.

The 24VDC 225XST-I features a voltage in-rush limiting PCB design that provides greater compatability with factory automation control systems and less electrical interference with in-rush sensitive devices.

The 225XST is UL Listed and CSA Certified for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III.

Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries, or anywhere a visual signal is needed.

Federal Signal's affordable Electraray Strobe Warning Light is specifically designed for use in hazardous locations or where corrosive materials are present.

Models

Part # Description Ship Weight Net Weight
225XST-012-024A Strobe, 12-24VDC, hazardous location, amber 2 lbs. 1.5 lbs. Add to Quote >
225XST-012-024B Strobe, 12-24VDC, hazardous location, blue 2 lbs. 1.5 lbs. Add to Quote >
225XST-012-024C Strobe, 12-24VDC, hazardous location, clear 2 lbs. 1.5 lbs. Add to Quote >
225XST-012-024G Strobe, 12-24VDC, hazardous location, green 2 lbs. 1.5 lbs. Add to Quote >
225XST-012-024M Strobe, 12-24VDC, hazardous location, magenta 2 lbs. 1.5 lbs. Add to Quote >
225XST-012-024R Strobe, 12-24VDC, hazardous location, red 2 lbs. 1.5 lbs. Add to Quote >
225XST-120A Strobe, 120VAC, hazardous location, amber 2 lbs. 1.5 lbs. Add to Quote >
225XST-120B Strobe, 120VAC, hazardous location, blue 2 lbs. 1.5 lbs. Add to Quote >
225XST-120C Strobe, 120VAC, hazardous location, clear 2 lbs. 1.5 lbs. Add to Quote >
225XST-120G Strobe, 120VAC, hazardous location, green 2 lbs. 1.5 lbs. Add to Quote >
225XST-120M Strobe, 120VAC, hazardous location, magenta 2 lbs. 1.5 lbs. Add to Quote >
225XST-120R Strobe, 120VAC, hazardous location, red 2 lbs. 1.5 lbs. Add to Quote >
225XST-240A Strobe, 240VAC, hazardous location, amber 2 lbs. 1.5 lbs. Add to Quote >
225XST-240B Strobe, 240VAC, hazardous location, blue 2 lbs. 1.5 lbs. Add to Quote >
225XST-240C Strobe, 240VAC, hazardous location, clear 2 lbs. 1.5 lbs. Add to Quote >
225XST-240G Strobe, 240VAC, hazardous location, green 2 lbs. 1.5 lbs. Add to Quote >
225XST-240R Strobe, 240VAC, hazardous location, red 2 lbs. 1.5 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LHWB Hazardous location mounting bracket, wall mount 2.3 lbs. Add to Quote >

Replacement Parts

Description Part #
PC Assembly, 12-24VDC K2001202C-01 Add to Quote >
PC Assembly, 120VAC K2001905A Add to Quote >
PC Assembly, 240VAC K2001905A-01 Add to Quote >
Strobe Tube K8107177A Add to Quote >
Interior Lens, Amber K8550C095A-02 Add to Quote >
Interior Lens, Blue K8550C095A-01 Add to Quote >
Interior Lens, Clear K8550C095A Add to Quote >
Interior Lens, Green K8550C095A-04 Add to Quote >
Interior Lens, Magenta K8550C095A-07 Add to Quote >
Interior Lens, Red K8550C095A-03 Add to Quote >
Dome, Clear K8444D219C-04 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signal devices for use in hazardous locations UJTK_E207119.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signal devices for use in hazardous locations certified for Canada UJTK7_E207119.pdf
Certified by CSA International
Signal appliances, miscellaneous, for hazardous locations 4818_03_1195955.pdf
Signal appliances, miscellaneous, for hazardous locations, certified to U.S. standards 4818_83.pdf

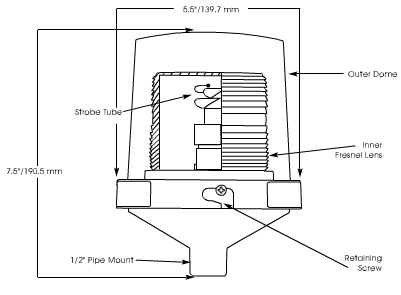

Diagrams

Specs

Mount 1/2" Pipe
Voltage

12-24VDC

120VAC

240VAC

Operating Current

1.70-0.70 Amps from 12-24VDC

0.25 Amps at 120VAC

0.20 Amps at 240VAC

Light Source/Lamp Style Strobe Tube
Lamp Life 10,000 Hours
Flash Rate/Minute 80
Peak Candela 580,000
Effective Candela 240
Operating Temperature Min. -40 F
Operating Temperature Max. 104 F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Dome Colors

Amber

Blue

Clear

Green

Magenta

Red

Height 7.5 IN
Diameter 5.5 IN
