Visual Signals

27S Pioneer™ Rotating Beacon Ray

  • Available in 120VAC
  • Six Lens colors
  • 2,000 hour sealed beam lamp
  • Integrated 1/2- inch pipe mount
  • Type 3R enclosure
  • UL and cUL Listed, CSA Certified

Federal Signal's Model 27S is a medium sized, highly effective warning light designed for upright mounting and AC operation.

The 27S streamlined design features a sturdy housing finished in gray enamel. The Pioneer™ is available in six lens colors (amber, blue, clear, green, magenta and red), and is UL (Underwriters Laboratories) Listed and CSA (Canadian Standards Association) Certified.

The Model 27S is ready to mount on a 1/2-inch pipe. In addition, optional mounting brackets simplify installation on walls or in corners.

A high intensity 65 watt sealed beam lamp projects a fixed beam downward onto a 360º rotating reflector set at a 45º angle, producing the 60 flashes per minute in all directions.

Model 27S is a versatile warning or signaling light useful in a variety of in-plant applications. It has been designed for permanent installation where a 120VAC, 50/60Hz line voltage is available.

This light is particularly useful as a signaling or warning device in high ambient noise areas where it can be used to supplement or supplant audible signaling devices.

The 27S is effective for alerting of hazardous conditions or identifying dangerous areas.

Federal Signal's Pioneer Rotating Beacon Ray is a dependable mid-range warning light which meets or exceeds the durability and light output requirements of most manufacturing environments.

Models

Part # Description Ship Weight Net Weight
27S-120ASB Rotating light, 120VAC, amber 4 lbs. 3.1 lbs. Add to Quote >
27S-120BSB Rotating light, 120VAC, blue 4 lbs. 3.1 lbs. Add to Quote >
27S-120CSB Rotating light, 120VAC, clear 4 lbs. 3.1 lbs. Add to Quote >
27S-120GSB Rotating light, 120VAC, green 4 lbs. 3.1 lbs. Add to Quote >
27S-120MSB Rotating light, 120VAC, magenta 4 lbs. 3.1 lbs. Add to Quote >
27S-120RSB Rotating light, 120VAC, red 4 lbs. 3.1 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LCMB2 Mounting bracket, corner 2.5 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. Add to Quote >

Replacement Parts

Description Part #
Dome, Amber K8241B031K-16 Add to Quote >
Dome, Blue K8241B031K-14 Add to Quote >
Dome, Clear K8241B031K-13 Add to Quote >
Dome, Green K8241B031K-11 Add to Quote >
Dome, Magenta K8241B031K-15 Add to Quote >
Dome, Red K8241B031K-12 Add to Quote >
Sealed Beam Lamp, 120V K8241A014B Add to Quote >
Motor, 120VAC K8241A030-03 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signalling appliances UEES_E162485.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signalling appliances certified for Canada UEES7_E162485.pdf
Certified by CSA International
Signal appliances, systems 4812_05_LR5835_48.pdf

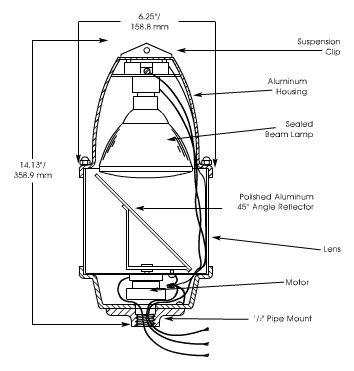

Diagrams

Specs

Mount 1/2" Pipe
Voltage 120VAC 50/60Hz
Operating Current 0.64 Amps
Light Source/Lamp Style 65-Watt Sealed Beam
Lamp Life 2,000 Hours
Flash Rate/Minute 60
Candela 6,000
Operating Temperature Min. 32 F
Operating Temperature Max. 120 F
Enclosure Rating Type 3R
Dome Colors

Amber

Blue

Clear

Green

Magenta

Red

Height 14.13 IN
Diameter 6.25 IN
