Visual Signals
371 Commander® Rotating Warning Light
- Available in 120VAC
- Three dome colors
- Pivoting lamp yoke
- Surface mount and integrated 1-inch pipe mount
- Type 4X, IP66 enclosure
- UL and cUL Listed, CSA Certified

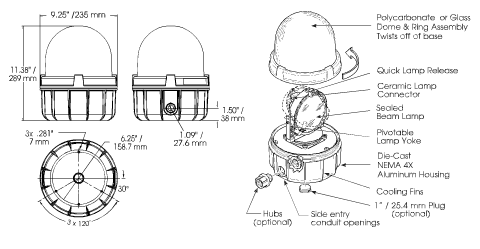

Federal Signal Model 371 incandescent warning lights have a powerful sealed beam lamp that rotates 360º within a glass or polycarbonate dome. Power is delivered to the Commander's rotating lamp by a unique collector ring. The lamp itself is mounted in a pivoting yoke. This allows the lamp beam angle to be adjusted through 90 degrees from horizontal to vertical. Changing the beam angle allows the user to create unique light patterns and/or direct the light for better visibility.
The Model 371 features a 200 watt sealed beam lamp and a high-temperature resistant glass dome. The glass dome of the 371 is ideal for applications such as steel mills or arc furnaces/smelters where high ambient temperatures or red hot materials would melt or damage the dome.
The Commander® is available in three colors (amber, blue and red). The dome and ring assembly simply screws on, providing access to the interior of the light.
The new 371 base features electrostatically applied (e-coated) black epoxy paint for greater corrosion-resistance. Wiring can be routed through the pipe-mount opening in the bottom of the light or the two side knockouts can be used for side entry wiring. Installation can be surface- or 1-inch pipe-mount. Optional wall and corner mount brackets are available.
The 371 is Type 4X, IP66 rated, UL and cUL Listed, and CSA Certified.
Special Considerations
- Mounting brackets are rated for Type 3R installations
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
371-120A | Rotating light, 120VAC, amber | 14.25 lbs. | 13.25 lbs. | Add to Quote > |
371-120A-1Z | Rotating light, 120VAC, amber, shock mount | 14.25 lbs. | 13.25 lbs. | Add to Quote > |
371-120B | Rotating light, 120VAC, blue | 14.25 lbs. | 13.25 lbs. | Add to Quote > |
371-120R | Rotating light, 120VAC, red | 14.25 lbs. | 13.25 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
LCMB2 | Mounting bracket, corner | 2.5 lbs. | Add to Quote > |
LWMB2 | Mounting kit, wall mount | 2.95 lbs. | Add to Quote > |
371BRCKT | Bracket Kit, 371 Mounting | Add to Quote > | |
K8459A076C | Shock Mount Kit | Add to Quote > | |
K8459138A | 3/4" Hub Kit | Add to Quote > | |
K8459130A | 1" Plug Kit | Add to Quote > |
Replacement Parts
Description | Part # | |
---|---|---|
Series B Dome and Ring Assembly, 371, Amber | K8459126A | Add to Quote > |
Series B Dome and Ring Assembly, 371, Blue | K8459126A-01 | Add to Quote > |
Series B Dome and Ring Assembly, 371, Red | K8459126A-02 | Add to Quote > |
200W Lamp | K8442A039 | Add to Quote > |
Motor Kit, 371 / 371L | K8459A113B | Add to Quote > |
Worm Gear Assembly | K8459A017 | Add to Quote > |
Brush and Spring | K8442A028 | Add to Quote > |
Gasket, Surface Mount | K8459127A | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Visual signalling appliances | UEES_E162485.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
Certified by CSA International | |
---|---|
Signal appliances, systems | 4812_05_1216208.pdf |
Specs
Voltage | 120VAC 50/60Hz |
---|---|
Mount | Surface 1" Pipe |
Operating Current | 1.75 Amps |
Light Source/Lamp Style | 200-Watt Sealed Beam |
Lamp Life | 2,000 Hours |
Flash Rate/Minute | 60 |
Peak Candela | 36,000 |
Operating Temperature Min. | -31 F |
Operating Temperature Max. | 150 F |
Enclosure Rating | Type 4X |
Ingress Protection (IP) | IP66 |
Dome Colors | Amber Blue Red |
Height | 11.38 IN |
Diameter | 9.12 IN |
