Visual Signals

371DST Commander® Double Strobe Hazardous Location Warning Light

  • Available in 12-24VDC, 120VAC and 240VAC
  • Five dome colors
  • Surface mount and integrated 1-inch pipe mount
  • Type 4X, IP66 enclosure
  • UL and cUL Listed, CSA Certified

Federal Signal Model 371DST is a double-flash strobe housed in a Type 4X enclosure. At 80 flashes per minute and 1,000 effective candela, the Commander® is the largest strobe signal in the Federal Signal product line.

The 371DST features an impact resistant polycarbonate dome available in five colors (amber, blue, clear, green, and red). The dome and ring assembly simply screws on, allowing for quick access to the strobe tube and printed circuit board assembly.

The new base of the Commander features electrostatically applied, black epoxy paint for greater corrosion resistance. Wiring can be routed through the pipe mount opening in the bottom of the light or the side knockouts can be used for side entry wiring. Installation can be surface- or 1-inch pipe mount. Optional wall and corner mount brackets are available for the 371DST. The Commander is rated Type 4X, IP66 (watertight, dust tight, corrosion resistant).

The 371DST is also rated for Hazardous Location, Class I Division 2, Groups A,B,C, & D, Class II Division 2, Groups F & G; and Class III. The LWMB2 wall mount bracket and the LCMB2 corner mount bracket can be used for all non-hazardous environments. This strobe is also UL and cUL Listed and CSA Certified.

Models

Part # Description Ship Weight Net Weight
371DST-012-024A Double flash strobe, 12-24VDC, amber 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-012-024B Double flash strobe, 12-24VDC, blue 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-012-024C Double flash strobe, 12-24VDC, clear 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-012-024G Double flash strobe, 12-24VDC, green 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-012-024R Double flash strobe, 12-24VDC, red 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-120A Double flash strobe, 120VAC, amber 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-120B Double flash strobe, 120VAC, blue 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-120C Double flash strobe, 120VAC, clear 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-120G Double flash strobe, 120VAC, green 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-120R Double flash strobe, 120VAC, red 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-240A Double flash strobe, 240VAC, amber 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-240B Double flash strobe, 240VAC, blue 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-240C Double flash strobe, 240VAC, clear 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-240G Double flash strobe, 240VAC, green 8.3 lbs. 6.23 lbs. Add to Quote >
371DST-240R Double flash strobe, 240VAC, red 8.3 lbs. 6.23 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
371BRCKT Bracket Kit, 371 Mounting   Add to Quote >
LHWB Haz. location mounting bracket, wall mount 2.3 lbs. Add to Quote >
K8459A076C Shock Mount Kit   Add to Quote >
K8459138A 3/4" Hub Kit   Add to Quote >
K8459130A 1" Plug Kit   Add to Quote >

Replacement Parts

Description Part #
Amber Polycarbonate, Series B Dome and Ring Assembly K8459125A Add to Quote >
Blue Polycarbonate, Series B Dome and Ring Assembly K8459125A-01 Add to Quote >
Clear Polycarbonate, Series B Dome and Ring Assembly K8459125A-02 Add to Quote >
Green Polycarbonate, Series B Dome and Ring Assembly K8459125A-03 Add to Quote >
Red Polycarbonate Series B Dome and Ring Assembly K8459125A-04 Add to Quote >
Clear, Inner Polycarbonate Dome K8422B428A Add to Quote >
PCB Assembly, 12-24VDC K2001265D-01 Add to Quote >
PCB Assembly, 120VAC K200865G-02 Add to Quote >
PCB Assembly, 240VAC K200865G-03 Add to Quote >
Gasket, Surface Mount K8459127A Add to Quote >
Strobe Tube K8107178A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signal devices for use in hazardous locations UJTK_E207119.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signal devices for use in hazardous locations certified for Canada UJTK7_E207119.pdf
Certified by CSA International
Signal appliances, systems 4818_05_LR5835_46.pdf

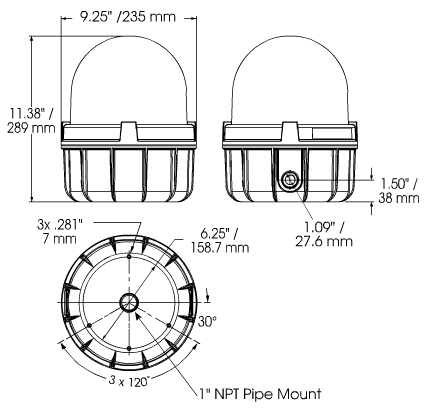

Diagrams

Specs

Mount

Surface

1" Pipe

Voltage

12-24VDC

120VAC 50/60Hz

240VAC 50/60Hz

Operating Current

3.00-1.90 Amps from 12-24VDC

0.60 Amps at 120VAC

0.30 Amps at 240VAC

Light Source/Lamp Style Strobe Tube
Lamp Life 10,000 Hours
Flash Rate/Minute 80 Double Flashes
Peak Candela 750,000
Effective Candela 1,000
Operating Temperature Min. -31 F
Operating Temperature Max. 104 F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Dome Colors

Amber

Blue

Clear

Green

Magenta

Red

Height 11.38 IN
Diameter 9.13 IN
