Visual Signals

371L Commander® Rotating Warning Light

  • Available in 120VAC
  • Five dome colors
  • Pivoting lamp yoke
  • Surface mount and integrated 1-inch pipe mount
  • Type 4X, IP66 enclosure
  • UL and cUL Listed, CSA Certified

Federal Signal Model 371L incandescent warning lights have a powerful sealed beam lamp that rotates 360º within a glass or polycarbonate dome. Power is delivered to the Commander's rotating lamp by a unique collector ring. The lamp itself is mounted in a pivoting yoke. This allows the lamp beam angle to be adjusted through 90 degrees from horizontal to vertical. Changing the beam angle allows the user to create unique light patterns and/or direct the light for better visibility.

The Model 371L features a 100 watt sealed beam lamp and an impact-resistant polycarbonate dome. The thinner polycarbonate dome allows more light to pass through while protecting the lamp.

The Commander® is available in five colors (amber, blue, clear, green and red). The dome and ring assembly simply screws on, providing access to the interior of the light.

The new 371L base features electrostatically applied (e-coated) black epoxy paint for greater corrosion-resistance. Wiring can be routed through the pipe-mount opening in the bottom of the light or the two side knockouts can be used for side entry wiring. Installation can be surface- or 1-inch pipe-mount. Optional wall and corner mount brackets are available.

The 371L is Type 4X, IP66 rated, UL and cUL Listed and CSA Certified.

Special Considerations

  • Mounting brackets are rated for Type 3R installations

Models

Part # Description Ship Weight Net Weight
371L-120A Rotating light, 120VAC, amber 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120A-1Z Rotating light, 120VAC, amber, shock mount 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120B Rotating light, 120VAC, blue 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120C Rotating light, 120VAC, clear 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120G Rotating light, 120VAC, green 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120R Rotating light, 120VAC, red 10.8 lbs. 9.8 lbs. Add to Quote >
371L-120R-1Z Rotating light, 120VAC, red, shock mount   10.8 lbs. 9.8 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LCMB2 Mounting bracket, corner 2.5 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. Add to Quote >
371BRCKT Bracket Kit, 371 Mounting   Add to Quote >
K8459A076C Shock Mount Kit   Add to Quote >
K8459138A 3/4" Hub Kit   Add to Quote >
K8459130A 1" Plug Kit   Add to Quote >

Replacement Parts

Description Part #
Amber Polycarbonate, Series B Dome and Ring Assembly K8459125A Add to Quote >
Blue Polycarbonate, Series B Dome and Ring Assembly K8459125A-01 Add to Quote >
Clear Polycarbonate, Series B Dome and Ring Assembly K8459125A-02 Add to Quote >
Green Polycarbonate, Series B Dome and Ring Assembly K8459125A-03 Add to Quote >
Red Polycarbonate Series B Dome and Ring Assembly K8459125A-04 Add to Quote >
100W Lamp K8107A130 Add to Quote >
Motor Kit, 371 / 371L K8459A113B Add to Quote >
Worm Gear Assembly K8459A017 Add to Quote >
Brush and Spring K8442A028 Add to Quote >
Gasket, Surface Mount K8459127A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signalling appliances UEES_E162485.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signalling appliances certified for Canada UEES7_E162485.pdf
Certified by CSA International
Signal appliances, systems 4812_05_1216208.pdf
Signal appliances, systems 4812_05_1508771.pdf

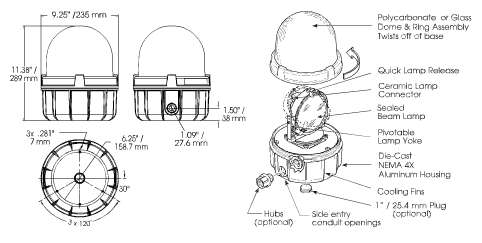

Diagrams

Specs

Mount

Surface

1" Pipe

Voltage 120VAC 50/60Hz
Operating Current 0.80 Amps
Light Source/Lamp Style 100-Watt Sealed Beam
Lamp Life 2,000 Hours
Flash Rate/Minute 60
Peak Candela 20,000
Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Dome Colors

Amber

Blue

Clear

Green

Red

Height 11.38 IN
Diameter 9.12 IN
