Visual Signals
371ST Commander® Strobe Warning Light
- Available in 250VDC
- Three dome colors
- Surface mount and integrated 1-inch pipe mount
- Type 4X, IP66 enclosure
Federal Signal Model 371ST is a single-flash strobe housed in a NEMA 4X enclosure. At 60 flashes per minute and 275 effective candela, the Commander® is the largest strobe signal in the Federal Signal product line.

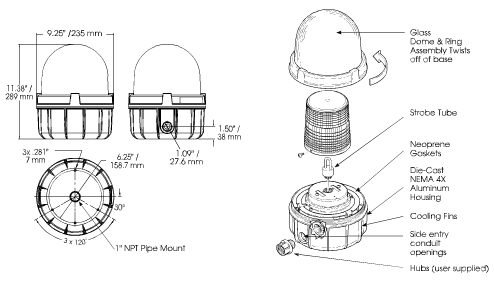

The 371ST features a heat resistant glass dome available in three colors (amber, blue and red). The dome and ring assembly simply screws on, allowing for easy access to the strobe tube and printed circuit board assembly.
The new base of the Commander features electrostatically applied, black epoxy paint for greater corrosion resistance. Wiring can be routed through the pipe mount opening in the bottom of the light or the side knockouts can be used for side entry wiring. Installation can be surface- or 1-inch pipe mount. Optional wall and corner mount brackets are available for the 371ST. The Commander is rated NEMA 4X, IP66 (watertight, dust tight, corrosion resistant).
The LWMB2 wall mount bracket and the LCMB2 corner mount bracket can be used to mount this strobe light.
Special Considerations
- Mounting brackets are rated for Type 3R applications
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 371ST-250A | Strobe light, 250VDC, amber | 12.4 lbs. | 10 lbs. | Add to Quote > |
| 371ST-250B | Strobe light, 250VDC, blue | 12.4 lbs. | 10 lbs. | Add to Quote > |
| 371ST-250R | Strobe light, 250VDC, red | 12.4 lbs. | 10 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| LCMB2 | Mounting bracket, corner | 2.5 lbs. | Add to Quote > |
| 371BRCKT | Bracket Kit, 371 Mounting | Add to Quote > | |
| LWMB2 | Mounting kit, wall mount | 2.95 lbs. | Add to Quote > |
| LHWB | Hazardous loc. mounting bracket, wall mount | 2.3 lbs. | Add to Quote > |
| K8459A076C | Shock Mount Kit | Add to Quote > | |
| K8459138A | 3/4" Hub Kit | Add to Quote > | |
| K8459130A | 1" Plug Kit | Add to Quote > |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Series B Dome and Ring Assembly, 371, Amber | K8459126A | Add to Quote > |
| Series B Dome and Ring Assembly, 371, Blue | K8459126A-01 | Add to Quote > |
| Series B Dome and Ring Assembly, 371, Red | K8459126A-02 | Add to Quote > |
| Clear, Inner Polycarbonate Dome | K8422B428A | Add to Quote > |
| PC Assembly, 250VDC | K2001070B | Add to Quote > |
| Gasket, Surface Mount | K8459127A | Add to Quote > |
| Strobe Tube | K149122B | Add to Quote > |
Specs
| Mount | 1" Pipe Surface |
|---|---|
| Voltage | 250VDC |
| Operating Current | 0.25 Amps at 250VDC |
| Light Source/Lamp Style | Strobe Tube |
| Lamp Life | 10,000 Hours |
| Flash Rate/Minute | 60 |
| Peak Candela | 625,000 |
| Effective Candela | 275 |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP66 |
| Dome Colors | Amber Blue Red |
| Height | 11.38 IN |
| Diameter | 9.13 IN |
