Visual Signals

400R Rotating Combination Audible/Visual Warning Signal

  • Available in 120VAC
  • Four dome colors
  • Wall mount
  • Sounder/Horn (Model 350) sold separately
  • Indoor/outdoor use
  • Type 3R enclosure
  • UL and cUL Listed

Federal Signal's Model 400R audible/visual signal combines the effective warning of a rotating light with an optional Federal Signal Model 350 horn.

The Model 400R includes a large 4.25-inch diameter rotating reflector assembly for projecting light beams. The unit features an incandescent lamp that produces 60 flashes per minute.

Available in four dome colors: amber, blue, green and red.

The Model 400R is ideal for use wherever both audible and visual warning signals are needed. This rugged unit is excellent for industrial use and adaptable to most in-plant signaling needs.

A modern housing design makes the Model 400R suitable for use in institutional or non-industrial settings requiring an audible/visual alarm system, where heavy-duty industrial equipment might not be appropriate. Sounder/horn (Model 350) sold separately.

Special Considerations

  • For audible signaling order optional horn and mounting kit

Models

Part # Description Ship Weight Net Weight
400R-120A Rotating light, 120VAC, amber 5.1 lbs. 4.5 lbs. Add to Quote >
400R-120B Rotating light, 120VAC, blue 5.1 lbs. 4.5 lbs. Add to Quote >
400R-120G Rotating light, 120VAC, green 5.1 lbs. 4.5 lbs. Add to Quote >
400R-120R Rotating light, 120VAC, red 5.1 lbs. 4.5 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
400HMK-AC Mounting kit, Model 350 horn 0.95 lbs. Add to Quote >

Replacement Parts

Description Part #
Exterior Dome, Amber K8547C001A-04 Add to Quote >
Exterior Dome, Blue K8547C001A-02 Add to Quote >
Exterior Dome, Green K8547C001A-03 Add to Quote >
Exterior Dome, Red K8547C001A-01 Add to Quote >
Incandescent Lamp, 120VAC, Series A and B K8107181A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signalling appliances UEES_E4813.pdf
Audible signal appliance, general signal UCST_E4813.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signalling appliances certified for Canada UEES7_E4813.pdf
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf

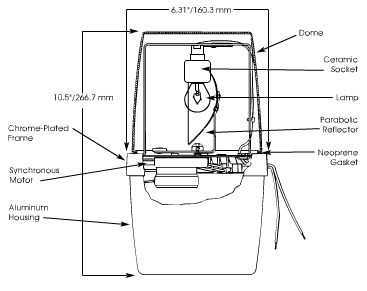

Diagrams

Specs

Mount Wall
Voltage 120VAC 50/60Hz
Operating Current 0.33 Amps
Light Source/Lamp Style Incandescent
Flash Rate/Minute 60
Candela 85
Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Enclosure Rating Type 3R
Dome Colors

Amber

Blue

Green

Red

Height 10.5 IN
Diameter 6.31 IN
