Visual Signals
AV1-LED LED Flashing Combination Audible/Visual Signal
- Available in 24VDC and 120VAC
- 60,000 hour LED light source
- Surface mount, integrated 1/2-inch NPT pipe mount, and 4-inch electrical box mount
- Five dome colors
- Twist-off lens for easy access
- Internal buzzer produces 85dB at 10ft (95dB at 1m)
- Type 3R enclosure
- UL and cUL Listed
Federal Signal introduces the Model AV1-LED combo audible/visual signal. The AV1-LED features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications. Available dome colors include Amber, Blue, Clear, Green and Red.

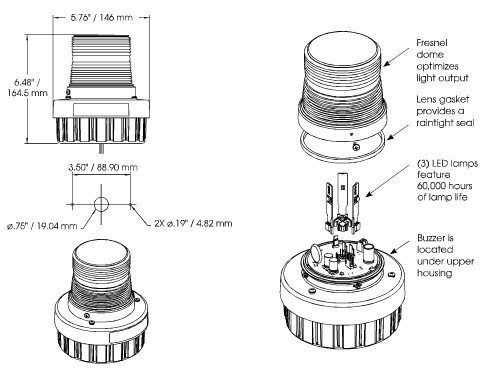

The AV1-LED design provides three mounting configurations. The black base will accommodate mounting to a 1/2-inch NPT pipe, a 4-inch octagonal electrical box or any flat surface. The surface mount gasket serves as a template for preparing a flat surface with appropriate mounting holes.
All AV1-LED units feature a unique twist and lock dome to allow for tool-free access to the LED. The fresnel lensing provides superior visibility in all directions.
The integrated buzzer provides 85dB output at 10 feet (95dB at 1 meter). The unit is capable of independent flashing light and sounder operation. The LED can be field adjusted to two flash patterns 60 FPM or 75 FPM via a jumper on the PC board.
The AV1-LED comes in two voltage variations: 24VDC and 120VAC. Each unit is factory assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit. The AV1-LED is UL and cUL Listed.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| AV1-LED-024A | Light/sounder combo, LED, flash, 24VDC, amber | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-024B | Light/sounder combo, LED, flash, 24VDC, blue | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-024C | Light/sounder combo, LED, flash, 24VDC, clear | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-024G | Light/sounder combo, LED, flash, 24VDC, green | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-024R | Light/sounder combo, LED, flash, 24VDC, red | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-120A | Light/sounder combo, LED, flash, 120VAC, amber | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-120B | Light/sounder combo, LED, flash, 120VAC, blue | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-120C | Light/sounder combo, LED, flash, 120VAC, clear | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-120G | Light/sounder combo, LED, flash, 120VAC, green | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
| AV1-LED-120R | Light/sounder combo, LED, flash, 120VAC, red | 1.75 lbs. | 1.25 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Dome, Amber | K8550292A-02 | Add to Quote > |
| Dome, Blue | K8550292A-01 | Add to Quote > |
| Dome, Clear | K8550292A | Add to Quote > |
| Dome, Green | K8550292A-04 | Add to Quote > |
| Dome, Red | K8550292A-03 | Add to Quote > |
| Lens Gasket | K8550306A | Add to Quote > |
| Surface Mount Gasket | K8591003A | Add to Quote > |
| LED Stick, Amber (3 Required) | K2005633A-A | Add to Quote > |
| LED Stick, Blue (3 Required) | K2005633A-B | Add to Quote > |
| LED Stick, Green (3 Required) | K2005633A-G | Add to Quote > |
| LED Stick, Red (3 Required) | K2005633A-R | Add to Quote > |
| LED Stick, White (3 Required) | K2005633A-W | Add to Quote > |
| Buzzer, 24VDC | K8591002A-03 | Add to Quote > |
| Buzzer, 120VAC | K8591002A | Add to Quote > |
Specs
| Mount | Surface 1/2" Pipe 4" Square Electrical Box |
|---|---|
| Voltage | 24VDC 120VAC |
| Operating Current | 0.27 Amps at 24VDC 0.03 Amps at 120VAC |
| Light Source/Lamp Style | LED Lamp |
| Lamp Life | 60,000 Hours |
| Flash Rate/Minute | 60/75 |
| Decibel Output | 95 at 1m - 24VDC models 85 at 1m - 120VAC models 85 at 10ft - All models |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 3R |
| Dome Colors | Amber Blue Clear Green Red |
| Height | 6.48 IN |
| Diameter | 5.76 IN |
