Visual Signals

BPL26 Battery Powered Warning Light

  • 12VDC - uses two standard 6VDC lantern batteries
  • Five dome colors
  • 300-hour, 5 watt incandescent lamp
  • Type 3R enclosure

Federal Signal's Model BPL26 is a portable, battery powered warning light which flashes 65 times per minute. The solid state flasher features components which are moisture-proof and reverse polarity protected to ensure extended battery life and trouble-free performance.

The BPL26 is available in five fresnel dome colors; amber, blue, clear, green and red. For increased durability, the dome is made of impact-resistant polycarbonate materials, and the base is constructed from a high-density polyethylene. A flexible, rubber seal covers the on/off switch to protect it from the elements.

A steel carrying handle on the top of the unit makes this warning light completely portable. Power is supplied by two standard 6-volt DC, spring terminal lantern batteries (not included).

The Model BPL26 is ideal for job sites requiring temporary warning lights or for any location where primary power is unavailable.

Models

Part # Description Ship Weight Net Weight
BPL26 Flashing light, battery-powered 12VDC, amber 3 lbs. 1.9 lbs. Add to Quote >
BPL26-B Flashing light, battery-powered 12VDC, blue 3 lbs. 1.9 lbs. Add to Quote >
BPL26-C Flashing light, battery-powered 12VDC, clear 3 lbs. 1.9 lbs. Add to Quote >
BPL26-G Flashing light, battery-powered 12VDC, green 3 lbs. 1.9 lbs. Add to Quote >
BPL26-R Flashing light, battery-powered 12VDC, red 3 lbs. 1.9 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Dome, Amber K8263A084A Add to Quote >
Dome, Blue K8263A084A-01 Add to Quote >
Dome, Red K8263A084A-02 Add to Quote >
Dome, Clear K8263A084A-03 Add to Quote >
Dome, Green K8263A084A-04 Add to Quote >
12VDC, 5 Watt Lamp K8107A151A Add to Quote >

Agency


NO DOCUMENTS FOUND

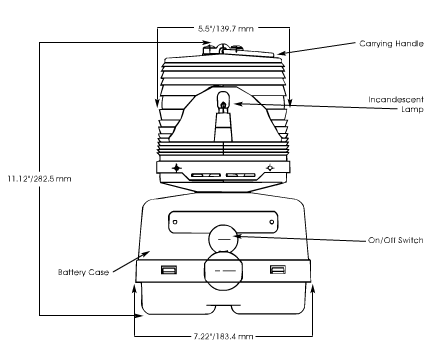

Diagrams

Specs

Mount Portable
Voltage 12VDC Battery
Operating Current 0.58 Amps
Batteries Required Two 6VDC Lantern Batteries
Light Source/Lamp Style 5-Watt Incandescent
Lamp Life 300 Hours
Flash Rate/Minute 65
Enclosure Rating Type 3R
Dome Colors

Blue

Clear

Green

Red

Amber

Height 11.12 IN
Width 7.22 IN
Diameter of Dome 5.5 IN
