Visual Signals

FB2PST-I Fireball® Strobe Warning Light

  • Available in 24VDC
  • Six dome colors
  • 10,000 hour strobe tube
  • Integrated 1/2" pipe and surface mount
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure
  • UL and cUL Listed, CSA Certified

Federal Signal's brightest and most compact strobe light, the Fireball® emits a powerful "lightning bolt" flash of light. Approximately five inches tall and four inches in diameter and rated at 300 effective candlepower, the Fireball is an economical solution to a wide variety of stationary and vehicular warning requirements. The Fireball is available in 12-24VDC, 24VDC, 120VAC and 240VAC. All models are UL Listed and CSA Certified. The FB2PST is available in six colors - amber, blue, clear, green, magenta, and red.

The 24VDC Model FB2PST-I features a voltage in-rush limiting PCB design that provides greater compatability with factory automation control systems and less electrical interference with in-rush sensitive devices.

The Fireball features a unique dome that twists off easily for quick dome and lamp replacements. The newly redesigned base features an integrated 1/2-inch pipe mount base as well as the three holes required for surface mount configurations. Black epoxy paint is electrostatically applied to the base for superior corrosion resistance. The Fireball dome and base design provides a watertight, dust-tight and corrosion resistant Type 4X rating.

The FB2PST is designed for stationary pipe and surface mount applications.

The Fireball can be used in any application where a superior visual signal is needed. It is especially effective in the warning of industrial hazards, process control, status indication and in areas with high ambient noise levels.

Federal Signal's Fireball Strobe is a very low-maintenance warning light for industrial applications where a vibration-resistant light is required to signal an emergency or process status.

Special Considerations

  • Mounting brackets not rated for Type 4X

Models

Part # Description Ship Weight Net Weight
FB2PST-I-024A Strobe, 24VDC, pipe/sur. mount, amber, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >
FB2PST-I-024B Strobe, 24VDC, pipe/sur. mount, blue, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >
FB2PST-I-024C Strobe, 24VDC, pipe/sur. mount, clear, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >
FB2PST-I-024G Strobe, 24VDC, pipe/sur. mount, green, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >
FB2PST-I-024M Strobe, 24VDC, pipe/sur. mntt, magenta, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >
FB2PST-I-024R Strobe, 24VDC, pipe/sur. mount, red, in-rush limit 2.12 lbs. 2 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
LCMB2 Mounting bracket, corner 2.5 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. Add to Quote >

Replacement Parts

Description Part #
Dome, Amber K8550320A Add to Quote >
Dome, Blue K8550320A-01 Add to Quote >
Dome, Clear K8550320A-021 Add to Quote >
Dome, Red K8550320A-03 Add to Quote >
Dome, Green K8550320A-04 Add to Quote >
Dome, Magenta K8550320A-05 Add to Quote >
PC Assembly, 12-24VDC K2001202C Add to Quote >
PC Assembly, 120VAC K200D866G Add to Quote >
PC Assembly, 240VAC K200D866G-01 Add to Quote >
Strobe Tube, Series A, A1, A2, A3 Call Us Add to Quote >
Strobe Tube, Series A4, A5, B K8107177A Add to Quote >
Fuse, 250V, 1 Amp K148A155A-01 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signalling appliances UEES_E162485.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signalling appliances certified for Canada UEES7_E162485.pdf
Certified by CSA International
Signal appliances, systems 4812_05_1194086.pdf
Signal appliances, systems 4812_05_LR5835_46.pdf

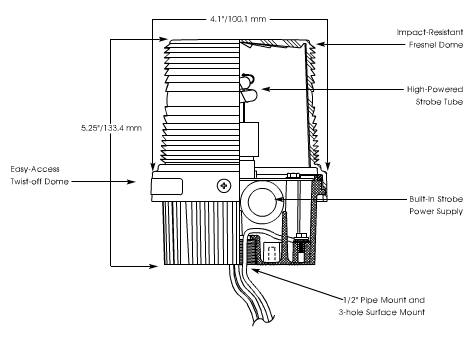

Diagrams

Specs

Mount

1/2" Pipe

Surface

Voltage 24VDC
Operating Current 0.70 Amps (2.0 amps in-rush)
Light Source/Lamp Style Strobe Tube
Lamp Life 10,000 Hours
Flash Rate/Minute 80
Peak Candela 1,000,000
Effective Candela 300
Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Enclosure Rating Type 4X
Ingress Protection (IP) IP66
Dome Colors

Amber

Blue

Clear

Green

Red

Magenta

Height 5.25 IN
Diameter 4.1 IN
