Visual Signals
FB2PSTX Fireball® 2 Explosion-Proof Strobe Warning Light
- Available in 12-24VDC and 120VAC
- Five lens colors
- 10,000 hour strobe tube
- Ceiling mount standard; other options available
- Type 4X, IP66 enclosure
- Marine Listed
- UL and cUL Listed

Federal Signal's FB2PSTX explosion-proof strobe light is a compact unit that produces a "lightning bolt" flash of light. Measuring 13.69" (348mm) high and 7.44" (189mm) in diameter, the FB2PSTX is available in 12-24VDC and 120VAC. These strobe lights are well suited for a wide range of explosion-proof warning light applications.
All models are UL and cUL Listed for indoor/outdoor and marine use. This model is UL Listed for Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class II, Division 2, Groups F and G; and Class III.

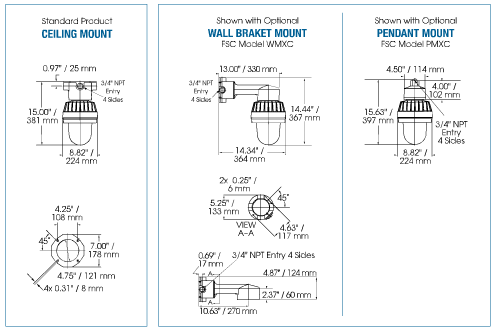

Model FB2PSTX has a self-contained power supply. The copper-free aluminum finned base dissipates heat and ensures long life. The outer dome is made of tempered glass. Polycarbonate inner lenses are available in amber, blue, clear, green and red. A rugged ceiling mount fixture is standard; optional wall mounts and dome guards are also available.
The FB2PST-I features a voltage in-rush limiting PCB design that provides greater compatability with factory automation control systems and less electrical interference with in-rush sensitive devices.
The Model FB2PSTX is suited for any application where a superior visual signal is needed and is especially effective for warning of industrial hazards, process control, status indication or in areas with high ambient noise levels.
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
FB2PSTX-12-24A | Strobe, 12-24VDC, explosion proof, amber | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-12-24B | Strobe, 12-24VDC, explosion proof, blue | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-12-24C | Strobe, 12-24VDC, explosion proof, clear | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-12-24G | Strobe, 12-24VDC, explosion proof, green | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-12-24M | Strobe, 12-24VDC, explosion proof, magenta | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-12-24R | Strobe, 12-24VDC, explosion proof, red | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120A | Strobe, 120VAC, explosion proof, amber | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120B | Strobe, 120VAC, explosion proof, blue | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120C | Strobe, 120VAC, explosion proof, clear | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120G | Strobe, 120VAC, explosion proof, green | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120M | Strobe, 120VAC, explosion proof, magenta | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
FB2PSTX-120R | Strobe, 120VAC, explosion proof, red | 13.1 lbs. | 9.6 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
WMXC | Mounting kit, 90º wall, 27XST and 121X | 5.4 lbs. | Add to Quote > |
DGFBX | Dome guard, FB2PSTX | 0.6 lbs. | Add to Quote > |
Replacement Parts
Description | Part # | |
---|---|---|
Dome, Amber | K8550292A-02 | Add to Quote > |
Dome, Blue | K8550292A-01 | Add to Quote > |
Dome, Clear | K8550292A | Add to Quote > |
Dome, Green | K8550292A-04 | Add to Quote > |
Dome, Red | K8550292A-03 | Add to Quote > |
Outer Dome Assembly, Explosion Proof | K8550272A-01 | Add to Quote > |
PC Assembly, 12-24VDC | K2001202C | Add to Quote > |
PC Assembly, 120VAC | K200D866G | Add to Quote > |
Strobe Tube | K8107177A | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Visual signal devices for use in hazardous locations | UJTK_E207119.pdf |
Visual signal devices, Marine | UXUB_E84580.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Miscellaneous for use in hazardous locations, certified for Canada | UJPX7_E84580.pdf |
Visual signal devices for use in hazardous locations certified for Canada | UJTK7_E207119.pdf |
Specs
Mount | Ceiling Optional Wall Mount Kit |
---|---|
Voltage | 12-24VDC 120VAC 50/60Hz |
Operating Current | 1.70-0.70 Amps from 12-24VDC 0.25 Amps at 120VAC |
Light Source/Lamp Style | Strobe Tube |
Lamp Life | 10,000 Hours |
Flash Rate/Minute | 80 |
Peak Candela | 800,000 |
Effective Candela | 320 |
Operating Temperature Min. | -13 F |
Operating Temperature Max. | 149 F |
Enclosure Rating | Type 4X |
Ingress Protection (IP) | IP66 |
Dome Guard | Sold Separately |
Dome Colors | Amber Blue Clear Green Red |
Height | 13.69 IN |
Diameter | 7.44 IN |
