Visual Signals

FB3SM FireBeam® Compact Vehicular Warning Light.

  • *NOTE: Product Discontnued. Please See replacement tab.
  • Available in 12VDC
  • 68,000 candela output
  • 55 watt Halogen lamp
  • Dual Speed Motor for 95 or 175 FPM
  • Five dome colors
  • Low profile - only 3.8" high

*NOTE: Product Discontnued. Please See replacement tab.

Federal Signal's FireBeam® is a super-bright, compact vehicular warning light. This rotating 55 watt halogen light produces 68,000 candelas per flash.

Each lightweight unit features a polycarbonate base and snap-on dome. The light is easily and quickly serviced without the use of tools.

The jewel-shaped lens is available in five colors: amber, blue, clear, green and red. Each FireBeam comes with a black half-dome that snaps over the back of the unit and prevents back flash when used inside vehicles.

The FireBeam features a dual speed motor with a convenient slide switch that allows you to choose an operating speed of 95 or 175 flashes per minute.

Power is supplied to the FireBeam via a 10-foot coil cord with a cigarette lighter-type plug. The FireBeam operates on 12VDC.

The FireBeam is supplied with both a magnetic mount for use outside the vehicle on the roof or hood and a swivel mount for permanent installation.

Models

Part # Description Ship Weight Net Weight
FB3SM-A Rotating light, 12VDC, magnetic mount, amber 2 lbs. 1.8 lbs. Add to Quote >
FB3SM-B Rotating light, 12VDC, magnetic mount, blue 2 lbs. 1.8 lbs. Add to Quote >
FB3SM-C Rotating light, 12VDC, magnetic mount, clear 2 lbs. 1.8 lbs. Add to Quote >
FB3SM-G Rotating light, 12VDC, magnetic mount, green 2 lbs. 1.8 lbs. Add to Quote >
FB3SM-R Rotating light, 12VDC, magnetic mount, red 2 lbs. 1.8 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Dome, Amber K8550137A-02 Add to Quote >
Dome, Blue K8550137A-03 Add to Quote >
Dome, Clear K8550137A Add to Quote >
Dome, Green K8440137A-04 Add to Quote >
Dome, Red K8550137A-01 Add to Quote >
55 Watt Halogen Lamp, 12VDC K8440A265A-02 Add to Quote >
Motor for FB3SM K8422B463B-02 Add to Quote >
Half Lens Cover, Black K8550140A Add to Quote >
Cigarette Plug Cord K8550318A Add to Quote >
Magnet Mount Assembly K8550A012A Add to Quote >

Agency


NO DOCUMENTS AVAILBLE

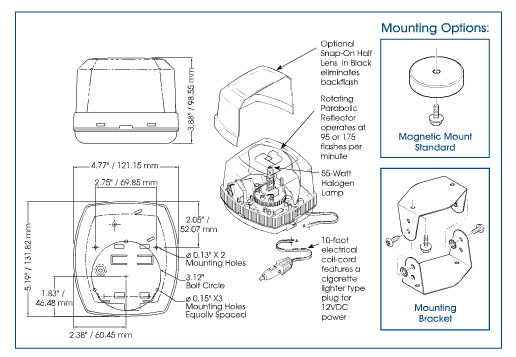

Diagrams

Specs

Mount

Magnetic

Swivel Bracket

Voltage

12VDC

Operating Current 4.3 Amps
Light Source/Lamp Style 55-Watt Halogen
Lamp Life 200 Hours
Flash Rate/Minute 95 or 175
Peak Candela 68,000
Dome Colors

Amber

Blue

Clear

Green

Red

Height 4.8 IN
Width 3.8 IN
Length 5.1 IN
