Visual Signals

2000 Series Model LED Explosion-Proof LED Warning Light

  • Super bright output with XLT™ Technology
  • Three remotely selectable flash patterns
  • 50,000 hour lamp life
  • Available in five colors
  • Ex 'e' terminal chamber available
  • AC and DC voltage ranges
  • Approved for use in Zone 1, 2, 21, 22 atmospheres

The 2000 Series model LED beacon, with XLT™ technology, is a visual signal warning light for use in hazardous locations requiring ATEX approval. The beacon can produce three light patterns depending on the configuration of a field selectable jumper wire or remote contact closure. The light patterns are: steady-on, slow flash and rapid flash. An optional telephone initiation feature also allows the beacon to flash when telephone ringing voltage is present.

The 2000 Series LED beacon is sealed from dust and water by a nitrile rubber o-ring seal. All exterior cast aluminum surfaces are finished in powder coat paint and external hardware is manufactured from stainless steel to resist corrosion. Available signal colors are amber, blue, green, red and yellow.

The 2000 Series LED beacon is externally powered by 24VDC or 110-240VAC source. All AC powered units feature a switch mode power supply that accommodates a wide input voltage range without requiring any additional configuration from the user. The current consumption from the beacon is less than 500mA and the in-rush current is low enough to allow PLC initiation without the use of an external relay. Screw type terminal blocks are provided for field wiring on all units.

All variations of the 2000 Series LED beacon feature a four entry fixture to allow cable looping. These cable entries are metric M20 X 1.5, but other configurations are available upon request.

How To Order

  • Contact us to design a system that meets your specific requirements.

Models


Call Us Toll-Free: (877) 268-3700

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

ATEX Certificate
Equipment or Protective System intended for use in potentially explosive atmospheres Baseefa07ATEX0150.pdf
IECEx Certificate of Conformity
Certification Scheme for Explosive Atmospheres IECEx BAS 07 0038.pdf
Ex GOST-R Certificate
See card for standards P-LS2_Ex-GOST-R_Cert.pdf

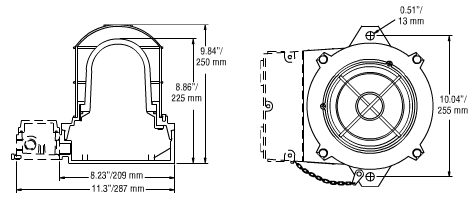

Diagrams

Specs

Mount Surface
Voltage

24VDC

110VAC

240VAC

Operating Current

0.50 Amps @ 24VDC

0.22 Amps @ 110VAC

0.13 Amps @ 240VAC

Maximum In-rush Current

1.75A for 5.00mS @ 24VDC

2.00A for 0.25mS @110VAC or 240VAC

Light Source/Lamp Style LED Array
Lamp Life 50,000 Hours
Flash Rate/Minute 60-80
Exterior Dome Toughened Glass
Dome Guard 316 Stainless Steel
Colors/Light Output

Amber - 113cd

Blue - 12cd

Green - 66cd

Red - 63cd

Yellow - 60cd

Operating Temp. Min., Ex d and Ex de -40 F
Operating Temp. Max., Ex d and Ex de 131 F
Ingress Protection (IP) IP66
Certification Marking

Ex d IIB T4 Ex tD A21

Ex de IIB T4 Ex tD A21

Terminals

Ex d - 4 way block mounted PCB

Ex de - 12 way block in terminal chamber

Cable Entries Ex d and Ex de - 4 entries, M20 x 1.5
Body Marine Grade Alloy Painted Regal Red
Height 9.84 IN
Width 10.04 IN
Length 8.23 IN
