Visual Signals

LHWB Hazardous Location Light Mounting Kit

  • Heavy-duty construction
  • Easy installation
  • For wall mount applications
  • Replaces unsightly and hazardous makeshift supports
  • Provides 3/4-inch NPT standard pipe mount
  • Indoor and outdoor use
  • Class I, Division 2
  • Type 4X
  • IP66
  • UL and cUL Listed

Federal Signal's Model LHWB Hazardous Location mounting bracket is specifically designed for use with Federal Signal's stationary warning lights to provide an easy and consistent means of securely mounting lights throughout a facility. The bracket features a 3/4-inch NPT male pipe connection. Optional bushings available for 1/2-inch and 1-inch fixture mounting.

Federal Signal's Model LHWB is constructed of durable cast aluminum and sealed with a durable black powder coat paint. Easy to install, these units can be wired through either the 1/2-inch or 3/4-inch conduit openings located in the weather proof back box, included. Each kit includes a bracket, weather proof back box and hardware kit. Easy installation, heavy-duty construction and a professional appearance make this bracket suitable for use in commercial, institution and industrial environments.

The LHWB bracket is UL Listed for Class I, Division 2, Groups A, B, C and D; Class II Division 2, Groups F and G; and Class III. This bracket may NOT be used in Class II, Division 1 applications. Type 4X and IP66 rated when used with the appropriate conduit fittings.

Models

Part # Description Ship Weight Net Weight
LHWB Hazardous location mounting bracket, wall mount 2.3 lbs. 2 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Hardware Kit K2881358A Add to Quote >
3/4" to 1/2" Pipe Mount K2881337A Add to Quote >
3/4" to 1" Pipe Mount t K2881338A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Visual signal devices for use in hazardous locations UJTK_E207119.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Visual signal devices for use in hazardous locations certified for Canada UJTK7_E207119.pdf

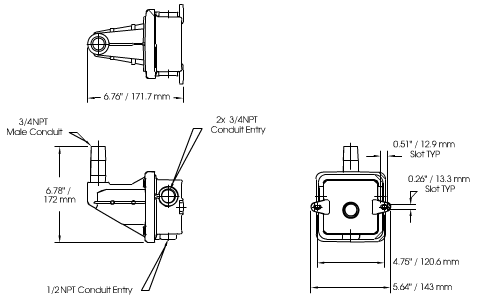

Diagrams

Specs

Operating Temperature Min. -58 F
Operating Temperature Max. 150 F
Height 6.78 IN
Width 5.64 IN
Extension 6.76 IN
