Visual Signals
LP2 StreamLine® Low Profile Light
- Available in 24VAC/VDC and 120VAC
- Surface or panel mount
- Steady burning
- Five dome colors
- Type 4X enclosure
- Low profile - only 2.5" H x 3" diameter (65mm x 76mm)
- Built-in strain relief
- Incandescent lamp included
- UL and cUL Listed, CE Compliant

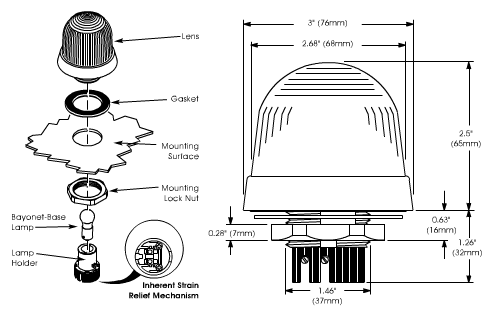

The StreamLine® Model LP2 is a unique, steady burning incandescent light, ideal for both horizontal and vertical panel mount installation. This device mounts easily through any 1.54" (39mm) diameter hole; a lock nut secures the light firmly in place. A gasket positioned above the mounting surface assures a water-tight and dust-tight fit. The lamp is easily replaced from below the mounting surface. Inherent strain relief secures all wiring from the rear, for added durability. The enclosure consists of a polycarbonate dome in five colors (amber, blue, clear, green and red), and a polyamide base; the enclosure with gasket is rated Type 4X.
A 6 watt incandescent lamp is included. The double-contact bayonet base (Type S-6) is a standard lamp style, readily available when replacement is required. Lamp life is approximately 1,500 hours when run on AC power.
Like all Federal Signal products, the StreamLine LP2 is designed with customer applications in mind. The LP2 functions in most PLC applications (including triac outputs). Careful consideration has been given to the relationship between lamp shape and lens design for maximum light output.
When your application calls for a compact signal with unparralleled reliability, Federal Signal's StreamLine products are the clear choice.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| LP2-024A | Steady burn light, 24VDC, amber | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-024B | Steady burn light, 24VDC, blue | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-024C | Steady burn light, 24VDC, clear | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-024G | Steady burn light, 24VDC, green | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-024R | Steady burn light, 24VDC, red | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-120A | Steady burn light, 240VAC amber | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-120B | Steady burn light, 120VAC, blue | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-120C | Steady burn light, 120VAC, clear | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-120G | Steady burn light, 120VAC, green | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
| LP2-120R | Steady burn light, 120VAC, red | 0.28 lbs. | 0.2 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lamp, 24VAC/DC | K8107195A | Add to Quote > |
| Lamp, 120VAC | K8107195A-01 | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Power circuit and motor-mounted apparatus | NMTR_E185812.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Power circuit and motor-mounted apparatus certified for Canada | NMTR7_E185812.pdf |
Specs
| Mount | Panel Surface |
|---|---|
| Voltage | 24VAC/VDC 120VAC |
| Operating Current | 0.30 Amps at 24VAC/VDC 0.06 Amps at 120VAC |
| Light Source/Lamp Style | 6-Watt Incandescent, Type S-6 |
| Lamp Life | 1,500 Hours |
| Operating Temperature Min. | -4 F |
| Operating Temperature Max. | 140 F |
| Enclosure Rating | Type 4X |
| Dome Colors | Amber Blue Clear Green Red |
| Height Above Surface | 2.5 IN |
| Depth Below Surface | 1.26 IN |
| Diameter | 3 IN |
