Visual Signals
LP3PI StreamLine® Low Profile Steady Burning Light
- Available in 24VDC and 120VAC
- Integrated 1/2 -inch male pipe mount
- Incandescent lamp included
- Five dome colors
- Screw-on lens
- Type 4X enclosure
- Optional wire guard
- UL and cUL Listed, CSA Certified
Federal Signal introduces the Model LP3I low profile steady burning light. The Type 4X light is available in five colors: amber, blue, clear, green, and red.

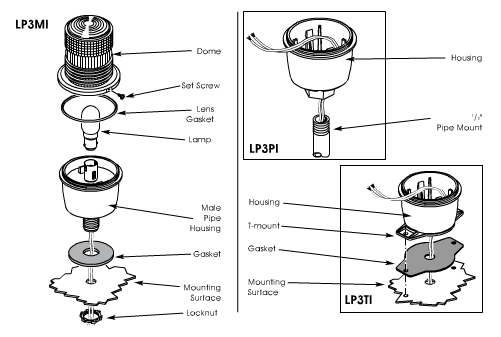

The LP3I is offered in three mounting configurations. LP3PI features an integrated 1/2-inch NPT pipe mount. LP3MI features an integrated 1/2 -inch male pipe mount. The "T-mount" LP3TI has a popular 2-hole design for wall or flush mounting.
Both the LP3MI and LP3TI include a surface gasket to complete the Type 4X installation. All LP3I units feature a threaded screw-on lens. The LP3PI comes in two voltages, 24VDC and 120VAC.
A 15 watt incandescent lamp is included with all units. The lamp features a standard double-contact bayonet base readily available when replacement is required.
Like all StreamLine® products, the LP3I is designed with OEM applications in mind. It is economical, easy to install and attractive. Careful consideration has been given to the relationship between lamp shape and lens design for maximum light output.
When your application calls for a compact signal with unparalleled reliability, Federal Signal's StreamLine products are the clear choice.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| LP3PI-024A | Incandescent, pipe mount, 24VDC, amber | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-024B | Incandescent, pipe mount, 24VDC, blue | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-024C | Incandescent, pipe mount, 24VDC, clear | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-024G | Incandescent, pipe mount, 24VDC, green | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-024R | Incandescent, pipe mount, 24VDC, red | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-120A | Incandescent, pipe mount, 120VAC, amber | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-120B | Incandescent, pipe mount, 120VAC, blue | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-120C | Incandescent, pipe mount, 120VAC, clear | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-120G | Incandescent, pipe mount, 120VAC, green | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
| LP3PI-120R | Incandescent, pipe mount, 120VAC, red | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lens, Amber | K8589063A | Add to Quote > |
| Lens, Blue | K8589063A-01 | Add to Quote > |
| Lens, Clear | K8589063A-02 | Add to Quote > |
| Lens, Green | K8589063A-03 | Add to Quote > |
| Lens, Red | K8589063A-04 | Add to Quote > |
| Gasket, Lens | K8589013A | Add to Quote > |
| Incandescent Lamp, 120VAC | K8107194A | Add to Quote > |
| Incandescent Lamp, 24VDC | K8107227A | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, systems | 4812_05_1126286.pdf |
Specs
| Mount | 1/2" Pipe |
|---|---|
| Voltage | 24VDC 120VAC |
| Operating Current | 0.67 Amps at 24VDC 0.13 Amps at 120VAC |
| Light Source/Lamp Style | 15-Watt Incandescent |
| Lamp Life | 2,000 Hours |
| Operating Temperature Min. | -31 F |
| Operating Temperature Max. | 150 F |
| Enclosure Rating | Type 4X |
| Dome Guard | Sold Separately |
| Dome Colors |
Amber Blue Clear Green Red |
| Height | 5.7 IN |
| Diameter | 3.13 IN |
