Visual Signals
LP3TL StreamLine® Low Profile, Steady Burning LED Light
- Available in 24VDC and 120VAC
- T-Mount
- Five dome/lens colors available
- 100,000 Hour LED
- Screw-on lens
- Indoor/outdoor use
- Type 4X enclosure
- Optional wire lens guard
- UL and cUL Listed, CSA Certified

Federal Signal introduces the Model LP3L low profile LED light. The Type 4X light is available in five LED/lens color combinations; amber, blue, clear, green and red. All LP3 models feature the easy access screw on lens.

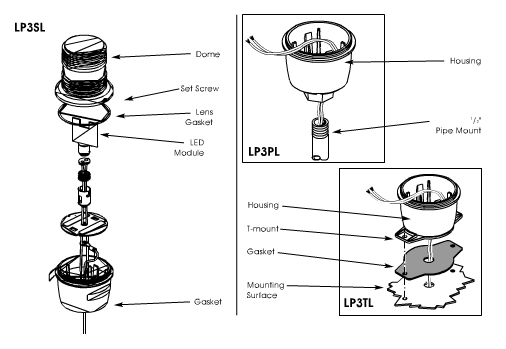

The LP3L is offered in four mounting configurations; LP3PL with an integrated 1/2-inch NPT pipe mount, LP3ML features an integrated 1/2-inch male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP2SL features a three hole surface mounting configuration. The T-mount and Surface mount units include surface gaskets to maintain the 4X installation.
The LP3L series is available in 24VDC and 120VAC. All models include the vibration resistant, double contact bayonet style 100,000 hour LED module.
Like all StreamLine® products, the LP3L is designed with OEM applications in mind. It is economical, easy to install and attractive. Careful consideration has been given to the relationship between the LED light source and the lens design for maximum light output.
When your application calls for a compact signal with unparalleled reliability, Federal Signal's StreamLine products are the clear choice.
Models
Part # | Description | Ship Weight | Net Weight | |
---|---|---|---|---|
LP3TL-024A | LED light, T-mount, 24VDC, amber | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-024B | LED light, T-mount, 24VDC, blue | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-024C | LED light, T-mount, 24VDC, clear | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-024G | LED light, T-mount, 24VDC, green | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-024R | LED light, T-mount, 24VDC, red | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-120A | LED light, T-mount, 120VAC, amber | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-120B | LED light, T-mount, 120VAC, blue | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-120C | LED light, T-mount, 120VAC, clear | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-120G | LED light, T-mount, 120VAC, green | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
LP3TL-120R | LED light, T-mount, 120VAC, red | 0.53 lbs. | 0.46 lbs. | Add to Quote > |
Accessories
Part # | Description | Ship Weight | |
---|---|---|---|
LP3G | LP3 Wire guard | 1 lbs. | Add to Quote > |
Replacement Parts
Description | Part # | |
---|---|---|
Lens, Amber | K8589063A | Add to Quote > |
Lens, Blue | K8589063A-01 | Add to Quote > |
Lens, Clear | K8589063A-02 | Add to Quote > |
Lens, Green | K8589063A-03 | Add to Quote > |
Lens, Red | K8589063A-04 | Add to Quote > |
Gasket, LP3T | K8589012A | Add to Quote > |
Gasket, Lens | K8589013A | Add to Quote > |
LED Lamp, 24VDC, Amber | K8107199A | Add to Quote > |
LED Lamp, 24VDC, Blue | K8107199A-03 | Add to Quote > |
LED Lamp, 24VDC, Clear | K8107199A-04 | Add to Quote > |
LED Lamp, 24VDC, Green | K8107199A-02 | Add to Quote > |
LED Lamp, 24VDC, Red | K8107199A-01 | Add to Quote > |
LED Lamp, 120VAC, Amber | K8107200A | Add to Quote > |
LED Lamp, 120VAC, Blue | K8107200A-03 | Add to Quote > |
LED Lamp, 120VAC, Clear | K8107200A-04 | Add to Quote > |
LED Lamp, 120VAC, Green | K8107200A-02 | Add to Quote > |
LED Lamp, 120VAC, Red | K8107200A-01 | Add to Quote > |
Agency
Listed By Underwriter's Laboratory (ULus) | |
---|---|
Visual signalling appliances | UEES_E162485.pdf |
Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
---|---|
Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
Certified by CSA International | |
---|---|
Signal appliances, systems | 4812_05_1126286.pdf |
Specs
Mount | T-Mount |
---|---|
Voltage | 24VDC 120VAC |
Operating Current | 0.08 Amps at 24VDC 0.13 Amps at 120VAC |
Light Source/Lamp Style | LED Lamp |
Lamp Life | 100,000 Hours |
Operating Temperature Min. | -31 F |
Operating Temperature Max. | 150 F |
Enclosure Rating | Type 4X |
Dome Guard | Sold Separately |
Dome Colors |
Amber Blue Clear Green Red |
Height | 5.1 IN |
Diameter | 3.13 IN |
