Visual Signals
LSHLS Litestak® Homeland Security Status Indicator
- Available in 24VDC and 120VAC
- Five lens colors
- Surface mount and integrated 3/4-inch pipe mount
- Available with LED or Incandescent Lamps
- Indoor use only
- Type 1 enclosure
- Made in the USA
- UL and cUL Listed, CSA Certified
Federal Signal, the world's largest prime manufacturer of audible and visual signaling for industry has introduced a Homeland Security Advisory Status Indicator. The LiteStak® is an effective tool for communicating the Threat Conditions as outlined in the Homeland Security Presidential Directive; Low (Green), Guarded (Blue), Elevated (Yellow), High (Orange) and Severe (Red). The LiteStak is suitable for use in industrial, commercial and municipal environments.
Each light module produces 360 degrees of light dispersion. Optical cross-hatching ensures a lens-filling distribution of light that is free of "hot spots". Each module of the LiteStak can beset up for either steady burning or flashing operation (with relays, flashers or PLCs). The lens of each module snaps on for quick and easy lamp maintenance.
Lamps choices include a rugged 25 watt incandescent bulb or a lifetime guaranteed 100,000 hour LED lamp. The LiteStak can be installed easily in a surface mount or a 3/4" NPT pipe mount configuration. The choice of operating voltages includes 24VDC and 120VAC for incandescent models and 120VAC for LED models.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| LSHLS-024 | Homeland security LiteStak® 5 colors, 24VDC | 4.8 lbs. | 3 lbs. | Add to Quote > |
| LSHLS-120 | Homeland security LiteStak® 5 colors, 120VAC | 4.8 lbs. | 3 lbs. | Add to Quote > |
| LSHLS-LED-120 | Homeland security LiteStak® LED, 5 colors, 120VAC | 4.8 lbs.. | 3 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lens Kit, Amber | K8447014A-02 | Add to Quote > |
| Lens Kit, Blue | K8447014A-04 | Add to Quote > |
| Lens Kit, Green | K8447014A-01 | Add to Quote > |
| Lens Kit, Orange | K8447014A-08 | Add to Quote > |
| Lens Kit, Red | K8447014A-03 | Add to Quote > |
| Snap Rivets, 25 pieces | K7099A112A-01 | Add to Quote > |
| Cap Kit, Snap Rivets Included | K8447009E | Add to Quote > |
| Incandescent Lamp, 24VDC | K8107210A | Add to Quote > |
| Incandescent Lamp, 120VAC | K8107194A | Add to Quote > |
| LED lamp, 24VDC, amber | LED-024ASB | Add to Quote > |
| LED lamp, 24VDC, blue | LED-024BSB | Add to Quote > |
| LED lamp, 24VDC, green | LED-024GSB | Add to Quote > |
| LED lamp, 24VDC, orange | LED-024ASB | Add to Quote > |
| LED lamp, 24VDC, red | LED-024RSB | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Visual signalling appliances | UEES_E162485.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Visual signalling appliances certified for Canada | UEES7_E162485.pdf |
Specs
| Mount | Surface 3/4" Pipe |
|---|---|
| Voltage | 24VDC (Incan. Version Only) 120VAC |
| Operating Current | LSHLS, 24VDC: 760 mA LSHLS, 120VAC: 230 mA LSHLS-LED, 120VAC: 40 mA |
| Light Source/Lamp Style | LED Lamp 25-Watt Incandescent |
| Lamp Life, Incandescent | 7,000 Hours |
| Lamp Life, L.E.D. | 100,000 Hours |
| Operating Temperature Min. | 32 F |
| Operating Temperature Max. | 120 F |
| Enclosure Rating | Type 1 |
| Dome Colors | Green Blue Amber Orange Red |

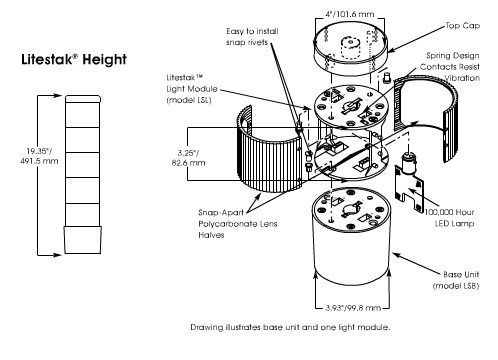

| Height | 19.35 IN |
| Diameter | 3.93 IN |
