Visual Signals

LWMB2 and LCMB2 Mounting Kits

  • Heavy-duty construction
  • Easy installation
  • For walls and outside corners
  • Replaces unsightly and hazardous makeshift supports
  • 1/2-inch, 3/4-inch, and 1-inch pipe mount
  • Indoor and outdoor use
  • Type 3R

Federal Signal's Models LWMB2 and LCMB2 mounting brackets are specifically designed for use with Federal Signal's stationary warning lights to provide an easy and consistent means of mounting lights throughout a facility.

Federal Signal's Models LWMB2 and LCMB2 are constructed of durable cast aluminum and sealed with gray powder coat paint. Easy to install, these units can be wired through the back of the bracket for electrical box mounting or through the threaded hole in the base for external 1/2-inch conduit connection. Each kit includes a bracket, plate and mounting screws.

Easy installation, heavy-duty construction and a professional appearance make the brackets suitable for use in commercial, institution and industrial environments.

These brackets are suitable for any Type 3R application in ordinary (non Division 1/Division 2) environments.

The LCMB2 and LWMB2 mounting kits may be used with the following Federal Signal models: 121S, 131ST, 131DST, 131C, 141(120V), 141ST, 225, 371, 371L, 371ST, 371DST, AV1, AV1ST, FB2PST and the FB24ST.

Models

Part # Description Ship Weight Net Weight
LCMB2 Mounting bracket, corner 2.5 lbs. 2.3 lbs. Add to Quote >
LWMB2 Mounting kit, wall mount 2.95 lbs. 2.6 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
NO DOCUMENTS FOUND

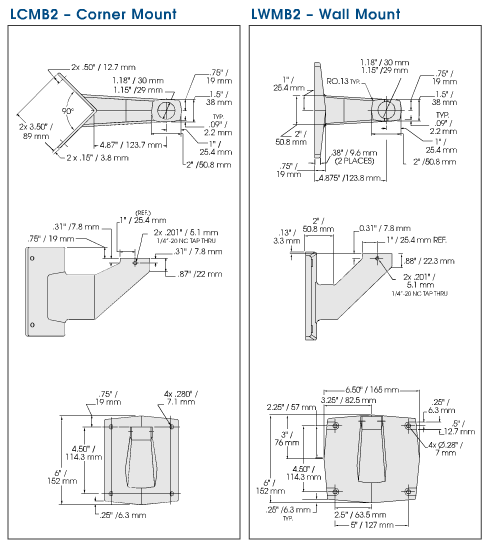

Diagrams

Specs

Enclosure Rating Type 3R
Height

LWMB2 -6 IN

LCMB2 -6 IN

Width

LWMB2 -6.375 IN

LCMB2 -5 IN

Extension

LWMB2 -5.875 IN

LCMB2 -5.75 IN
