Visual Signals
USIS UniStat Status Indicator
- Available in 24VDC and 120VAC
- Tri- or quad-color models
- 100,000 hour, vibration-resistant LED light source
- Built-in sounder
- Surface mount and integrated 3/4-inch pipe mount
- PLC compatible
- Indoor use only
- Type 4X, IP66 enclosure
- Type 1 with sounder
- UL and cUL Listed
The UniStat™ is an LED (light emitting diode) based, multi-color, single-high status indicator.
Using the latest die level LED technology, this unique status indicator can produce three colors (Amber, Green and Red) or four colors (Amber, Blue, Green and Red) from a single light source.
Ideal for OEM applications, the UniStat is compact, attractive, and easy to install. The low profile UniStat produces as much light as its much larger competitors.
The UniStat offers a choice of four integrated flash patterns - steady-burn, slow flash, strobe flash and SimuStrobe™. SimuStrobe simulates the attention-getting flash rate of a strobe light but with a much more color-rich output. The user can choose a total of 12 possible flash/color combinations in the tri-color models and 16 in the quad-color models.
When the application calls for an increased sense of urgency, specify the model USIS with an integrated piezo sounder*. Producing 60dB @ 10 feet, the USIS is the ideal attention getter in process control applications.

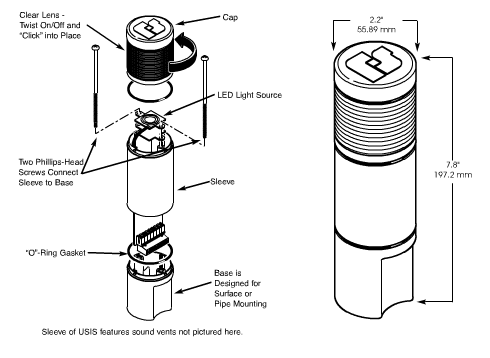

Like the multi-level, multi-color, multi-lamp MicroStat®, the UniStat is rated Type 4X (models with sounder are rated Type1). Each model arrives pre-assembled and ready to surface mount or 3/4-inch pipe mount. Options for the UniStat include pipe mount extensions (4",16", and 32"), a wall mount bracket and a tulip mount base (see MicroStat Optional Equipment).
*Sounder draws 100 mA on all models
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| USIS-024TC | UniStat™, tri-color, single-high, 24VDC | 0.7 lbs. | 0.4 lbs. | Add to Quote > |
| USIS-120TC | UniStat™, tri-color, single-high, 120VAC | 0.7 lbs. | 0.4 lbs. | Add to Quote > |
| USIS-024QC | UniStat™, quad-color, single-high, 24VDC | 0.7 lbs. | 0.4 lbs. | Add to Quote > |
| USIS-120QC | UniStat™, quad-color, single-high, 120VAC | 0.7 lbs. | 0.4 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| MSLBRCKT | Microstat® mounting bracket | 0.9 lbs. | Add to Quote > |
| MSP-4 | Pipe, Microstat®, 4" | 0.25 lbs. | Add to Quote > |
| MSP-16 | Pipe, Microstat®, 16" | 0.7 lbs. | Add to Quote > |
| MSP-32 | Pipe, Microstat®, 32" | 1 lbs. | Add to Quote > |
| MSTB | Base, tulip, Microstat® | 0.8 lbs. | Add to Quote > |
Replacement Parts
| Description | Part # | |
|---|---|---|
| Lens, Clear | K8447042A-02 | Add to Quote > |
| Cap | K8447044A | Add to Quote > |
| O-Ring | K8447054B | Add to Quote > |
| LED Array, Tri-Color | K2005328A | Add to Quote > |
| LED Array, Quad-Color | K2005328A-01 | Add to Quote > |
| PCB, USI or USIX, 24VDC | K2005347A-01 | Add to Quote > |
| PCB, USI or USIX, 120VAC | K2005347A-02 | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Power circuit and motor-mounted apparatus | NMTR_E185812.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Power circuit and motor-mounted apparatus certified for Canada | NMTR7_E185812.pdf |
