Visual Signals

VLB Vehicular Light Bar

  • Modular system
  • 360 degree light distribution
  • Quad flash, 9 joule output
  • Magnetic mount or permanent mount
  • Low current draw
  • Weather resistant housing
  • Meets SAE J1318 Class II

The Highlighter Strobe is designed for those who prefer the look of the traditional halogen light bar, but require strobe technology.

The Highlighter Strobe features two strobe heads and an integrated microprocessor controlled power supply that produces an alternating quad flash of 9-joules per head. The alternating flash tubes are positioned under onmi-directional Fresnel lens for maximum lens fill and off-axis visibility.

All Highlighter Strobe models meet SAE J1318 Class II requirements.

Mounting options include permanent mount or the flexibility of a suction cup/magnetic mounting. The magnetic mount unit comes equipped with a cigarette lighter power plug with an integrated On/Off switch for easy operational control. Permanent mounting can be achieved with any of the available mounting kits*: FMK - Flat Mounting Kit, RMK - Riser Mounting Kit.

*Permanent mounting requires one of the available mounting kits for installation.

Special Considerations

  • Permanent mounting requires one of the available mounting kits for installation

Models

Part # Description Ship Weight Net Weight
VLB-012AM Strobe light bar, 12VDC, mag./suction mount, amber 5 lbs.   Add to Quote >
VLB-012AP Strobe light bar, 12VDC, permanent mount, amber 5 lbs.   Add to Quote >

Accessories

Part # Description Ship Weight
RMK Riser mounting kit, model VLB-012AP   Add to Quote >
FMK Flat mounting kit, model VLB-012AP   Add to Quote >

Replacement Parts

Description Part #
Strobe Tube Assembly with Connector KZ8560082A Add to Quote >
Power Supply Assembly KZ8560081A Add to Quote >
Internal Lens, Clear K208669 Add to Quote >
Outer Dome, Amber K452510-02 Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
NO DOCUMENTS FOUND

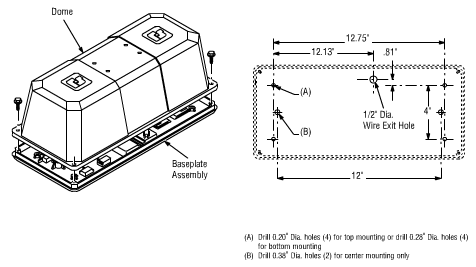

Diagrams

Specs

Mount

Magnetic/suction (model VLB-012AM)*

Permanent using flat or riser brackets (model VLB-012AP)

Voltage 12VDC
Operating Current 3.6 Amps @ 12.8VDC
Light Source/Lamp Style Strobe Tube
Joule Output 9
Dome Colors Amber
Height 5 IN
Width 9 IN
Diameter 15 IN
* Magnetic/suction cup mount equipped standard with 10 foot power cord and cigarette lighter plug
