Audible Devices

252 Vehicular Back-up Alarm

  • Operates within the 12VDC-48VDC range used in most vehicles
  • Rugged weatherproof housing
  • Solid-state, epoxy-sealed electronics
  • Produces 97dB @ 4' (109dB @ 1m)
  • Universal mounting
  • Conforms to SAE J994 sound level Type C requirements
  • Type 4X enclosure

Federal Signal's Model 252 back-up alarm is a solid state audible warning device enclosed in a weatherproof housing. The alarm produces a horn tone of 97dB at four feet (109dB at 1m) and sounds at approximately 60 times per minute with equal on and off pulses. Model 252 conforms to SAE (Society of Automotive Engineers) J994 Sound Level Type C.

Federal Signal's Model 252 housing is constructed of black glass-reinforced plastic and comes equipped with universal mountings for easy installation. When properly installed, this unit is weather-proof, dust-proof and not adversely affected by the steam cleaning of vehicles.

This rugged device is polarity protected and will operate within a range of 12VDC-48VDC.

Model 252 is designed for use in a wide variety of vehicles that operate in populated areas - both indoors and out. This alarm is ideal for use on forklifts, tractors, waste disposal vehicles, dump trucks, earth moving equipment or any other vehicle that operates near people.

Federal Signal's Model 252 Vehicular Back-up Alarm is an economical life-safety device designed to prevent accidents.

Models

Part # Description Ship Weight Net Weight
252-012-048 Back-up alarm, 12-48VDC 0.4 lbs. 0.3 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
NO PARTS FOUND

Agency


NO DOCUMENTS FOUND

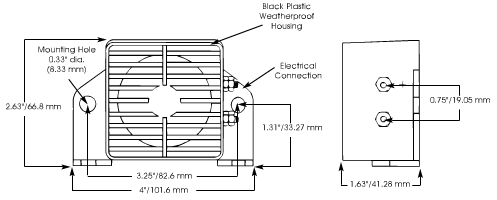

Diagrams

Specs

Voltage 12-48VDC
Mount Universal
Operating Current 0.20 Amps
Operating Temperature Min. -40 F
Operating Temperature Max. 167 F
Decibel Output

97 at 4 Feet

109 at 1 Meter

Enclosure Rating Type 4X
Height 2.63 IN
Width 4 IN
Depth 1.63 IN
