Audible Devices

300SCW-1 SelecTone® Wall Mounted Command Unit

  • Multi-voltage design operates on 24VDC, 120VAC and 240VAC
  • Produces four prioritized tone signals and public address
  • Remote microphone input
  • Wall mount
  • Type 1 enclosure
  • UL Listed and CSA Certified

The Federal Signal Model 300SCW-1 SelecTone® Command Unit generates up to four tones or voice communications through a SelecTone system.

Four tones, auxiliary, test and cancel are controlled via an illuminated keypad. Voice transmission is activated by keying the optional hand held microphone.

The Model 300SCW-1 is UL Listed and CSA Certified.

Choose four plug-in tone modules, including the UTM Universal Tone Module or the TM33 Custom Tone Module.

Public address can be accessed from the optional local microphone or via the remote microphone input. Public address has the highest priority, followed by tones 1-4, remote microphone and audio.

"Test" plays tones or voice messages through the monitor speaker only. "Cancel" interrupts any tone.

External dry contacts can be wired into the command unit for automatic remote operation of the signal system.

The Model 300SCW-1 SelecTone Command Unit is the basis for a simple, versatile general signaling system for weather warning, start and dismissal, general alarm, evacuation and paging.

Federal Signal's SelecTone Model 300SCW-1 Command Unit allows up to four tones and public address capability to be prioritized and broadcast through a SelecTone system.

Special Considerations

  • Specify up to four Tone Modules
    • Universal Tone Module (UTM)
    • Custom Tone Module (TM33)
  • Specify accessories, see table below

Models

Part # Description Ship Weight Net Weight
300SCW-1 SelecTone® Command Unit, wall mount 15 lbs. 13.4 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
MNC-1 Noise-canceling microphone, hand held 0.6 lbs. Add to Quote >
MSB-1 Microphone, desktop 2.05 lbs. Add to Quote >

Replacement Parts

Description Part #
Mother Board K2001154E Add to Quote >
Switch Board K2001147A Add to Quote >
Tone Card Connector K2001164A Add to Quote >
Connector, 17 Position K140A332A-17 Add to Quote >
Connector, 16 Position K140A332A-16 Add to Quote >
Fuse, 250V, 1 Amp K148A155A-01 Add to Quote >
Fuse, 250V, 1/2 Amp K148A155A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Commercial audio and radio equipment, systems and accessories AZJX_E61713.pdf
Certified by CSA International
Signal appliances, systems 4812_05_LR5835_50.pdf

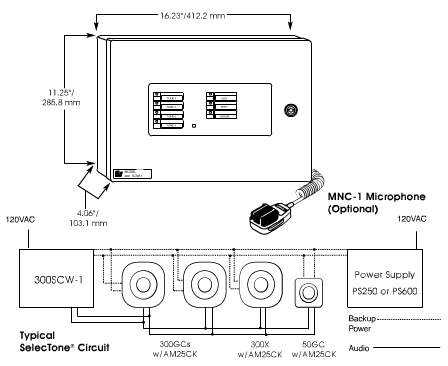

Diagrams

Specs

Voltage

24VDC (Allows emergency power back-up using models PS250, PS600 or PS1000)

120VAC 50/60Hz

240VAC 50/60Hz

Mount Wall
Operating Current

0.76 Amps at 24VDC

0.20 Amps at 120VAC

0.10 Amps at 240VAC

Standby Current

0.09 Amps at 24VDC

0.03 Amps at 120VAC

0.02 Amps at 240VAC

Tone Output - Unbalanced Signal Line 10Vrms (25 Ohm Maximum)
Tone Output - Balanced Signal Line 25Vrms (40 Ohm Maximum/15-watt)
Signal To Noise Ratio (<% 1.5 THD) Chip Input 67dBa
Signal Frequency Response 250Hz to 4.5KHz (typical)
Enclosure Rating Type 1
Height 11.25 IN
Width 16.23 IN
Depth 4.06 IN
