Audible Devices

300TAR SelecTone® Tone Activated Relay

  • Available in 24VAC/VDC and 120/240VAC
  • Detects tone signals and public address
  • Eliminates the need for additional control wires
  • Type 4X enclosure
  • UL Listed

The Federal Signal Model 300TAR is activated by swept frequency tone signals from the SelecTone® Command Center. A relay switches power in order to control the operation of selected devices. The 300TAR can be used to activate such devices as emergency lights, lock and unlock doors and exhaust fans. Additional applications include the activation of other circuits such as automatic dialers, digital message centers or PLC inputs.

The tone activated relay is designed to detect emergency dedicated signals emitted by a SelecTone Command Center. Through a twin set of Form C contacts, each rated at 8 Amperes, the 300TAR can switch power to activate up to two devices, eliminating the need for dedicated control lines.

The 300TAR has two modes of operation. In one mode, the unit can be adjusted for specific audio frequencies. The other mode does not discriminate and activates upon any audio signal, including tones or voice.

The 300TAR accepts all connector cards (AM25CK, and AM70CK), allowing its use with today's most popular audio line voltages.

The 300TAR is encased in a sturdy, die cast aluminum, corrosion-resistant housing. The unit is UL Listed.

Special Considerations

  • Specify Connector Kit for use in systems (sold separately)
    • 25Vrms Connector Kit (AM25CK)
    • 70Vrms Connector Kit (AM70CK)

Models

Part # Description Ship Weight Net Weight
300TAR-024 SelecTone® tone activated relay, 24VDC 3.15 lbs. 2.75 lbs. Add to Quote >
300TAR-120-240 SelecTone® tone activated relay, 120/240VAC 3.15 lbs. 2.75 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Double Pole Relay K131207A Add to Quote >
PC Board Assembly, 24VDC K2001306B-01 Add to Quote >
PC Board Assembly, 120/240VAC K2001306B Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Signal appliances, miscellaneous UEHX_E94581.pdf

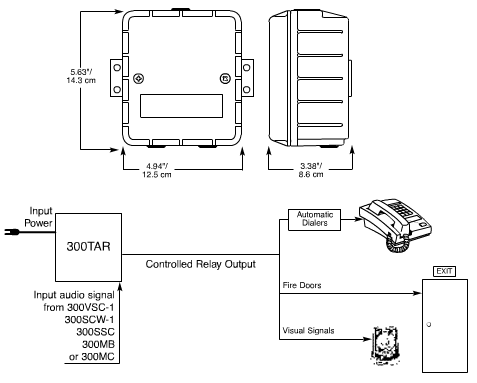

Diagrams

Specs

Voltage

24VAC 50/60Hz

24VDC

120VAC 50/60Hz

240VAC 50/60Hz

Mount Surface
Operating Current

56mA at 24VAC, 50/60Hz

168/180mA at 24VDC

64/38mA at 120VAC 50/60Hz

32/19mA at 240VAC 50/60Hz

Operating Temperature Min. -31 F
Operating Temperature Max. 150 F
Standby Current

29mA at 24VAC, 50/60Hz

92/93mA at 24VDC

61/32mA at 120VAC 50/60Hz

31/17mA at 240VAC 50/60Hz

Input Signal 1Vrms
Input Signal Frequency

Tone: 470Hz to 1300Hz +/- 15%

PA: 60Hz to 5000Hz +/- 15%

Enclosure Rating Type 4X
Height 5.63 IN
Width 4.94 IN
Depth 3.38 IN
