Audible Devices

300VSC-1044SB SelecTone® Rack-Mount Command Unit

  • Multi-voltage design accepts 24VDC, 120VAC or 240VAC
  • Produces four prioritized tones and public address
  • Remote microphone input
  • 19" rack mount
  • Type 1 enclosure
  • UL Listed and CSA Certified

The Federal Signal Model 300VSC-1044SB SelecTone® Command Unit generates up to four tones or voice communications in a SelecTone system. The housing can be mounted in any standard 19" equipment rack. Four tones, auxiliary, test and cancel are controlled via an illuminated keypad. Voice transmission is activated by keying the optional desktop or hand-held microphone.

The Model 300VSC-1044SB is UL Listed and CSA Certified.

Select up to four plug-in tone modules, including the UTM Universal Tone Module or the TM33 Custom Tone Module.

Public address can be accessed from the optional local microphone or the remote microphone input. Audio input allows background music to be played from any 1 volt peak-to-peak audio source. Public address has the highest priority, followed by tones 1-4, remote microphone and audio.

"Test" plays tones or voice messages through the monitor speaker only. "Cancel" interrupts any tone.

External dry contact closures can be wired into the command unit for automatic remote operation of the signal system.

The 300VSC-1044SB SelecTone Command Unit is the basis for a simple, versatile general signaling system for weather warning, start and dismissal, general alarm, evacuation and paging.

Special Considerations

  • Specify up to four Tone Modules
    • Universal Tone Module (UTM)
    • Custom Tone Module (TM33)
  • Specify accessories, see table below

Models

Part # Description Ship Weight Net Weight
300VSC-1044SB SelecTone® Command Unit, rack mount 7.9 lbs. 4.3 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
MNC-1 Noise-canceling microphone, hand held 0.6 lbs. Add to Quote >

Replacement Parts

Description Part #
Mother Board K2001154E Add to Quote >
Switch Board K2001147A Add to Quote >
Tone Card Connector K2001164A Add to Quote >
Connector, 17 Position K140A332A-17 Add to Quote >
Connector, 16 Position K140A332A-16 Add to Quote >
Fuse, 250V, 1 Amp K148A155A-01 Add to Quote >
Fuse, 250V, 1/2 Amp K148A155A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Commercial audio and radio equipment, systems and accessories AZJX_E61713.pdf
Certified by CSA International
Signal appliances, systems 4812_05_LR5835_50.pdf

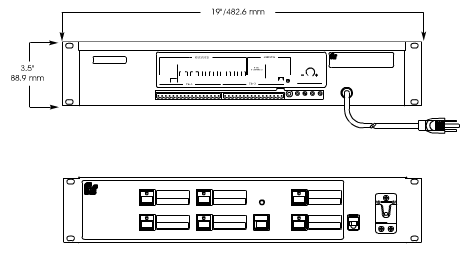

Diagrams

Specs

Voltage

24VDC (Allows emergency power back-up using models PS250, PS600 or PS1000)

120VAC 50/60Hz

240VAC

Mount 19" Rack
Operating Current

0.76 Amps at 24VDC

0.20 Amps at 120VAC

Standby Current

0.09 Amps at 24VDC

0.03 Amps at 120VAC

Tone Output - Unbalanced Signal Line 10Vrms (25 Ohm Maximum)
Tone Output - Balanced Signal Line 25Vrms (40 Ohm Maximum/15-watt)
Signal To Noise Ratio (<% 1.5 THD) Chip Input 67dBa
Signal Frequency Response 250Hz to 4.5KHz (typical)
Enclosure Rating Type 1
Height 3.5 IN
Width 19 IN
Depth 10 IN
