Audible Devices
350WBX Vibratone® Hazardous Location Horn
- Available in 120VAC or 240VAC
- Effective range of 200 feet
- Rated for Class I, Division 2; Class II, Division 2; Class III
- For coded or sustained tones
- Produces 100dBa @ 10' (110dBa @ 1m)
- Type 4X enclosure
- UL and cUL Listed, CSA Certified

 Model 350WBX (AC current) Vibratone® horn produces sound by the electro-mechanical vibration of a stainless steel diaphragm. The horn mechanism with diaphragm is attached to the grille. The water- and dust-tight backbox is ideal for indoor or outdoor use.
The Model 350WBX is available in 120 or 240VAC for 50/60Hz. Its sound output level is 100dBa nominal at ten feet (110dBa @ 1 meter).

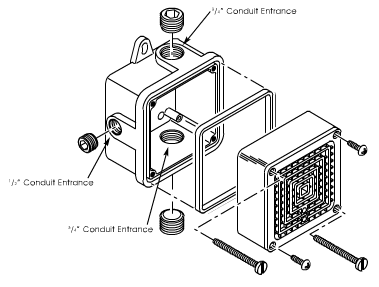

This hazardous location horn accommodates surface, flush or semi-flush mounting on walls, panels, in cabinets.
The Model 350WBX features a die-cast zinc housing with a corrosion-resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350WBX is fused and utilizes a terminal block connection. The 350WBX is approved for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III.
Capable of producing coded blasts or sustained tones, Federal Signal's Vibratone horns are excellent for general alarm, start/dismissal, coded paging and process control signaling in areas where their sound output exceeds ambient noise levels. Compact size and a variety of installation options make them ideal for institutional use.
Models
| Part # | Description | Ship Weight | Net Weight | |
|---|---|---|---|---|
| 350WBX-120 | Horn, 120VAC, haz. location, weatherproof back box | 2.8 lbs. | 2.7 lbs. | Add to Quote > |
| 350WBX-240 | Horn, 240VAC, haz. location, weatherproof back box | 2.8 lbs. | 2.7 lbs. | Add to Quote > |
Accessories
| Part # | Description | Ship Weight | |
|---|---|---|---|
| NOT APPLICABLE | |||
Replacement Parts
| Description | Part # | |
|---|---|---|
| Coil, 120VAC | KFC1516C | Add to Quote > |
| Volume Control Kit | K8435663B | Add to Quote > |
| Fuse, 250V, 1 Amp | K148A155A-01 | Add to Quote > |
Agency
| Listed By Underwriter's Laboratory (ULus) | |
|---|---|
| Audible signal appliance, general signal | UCST_E4813.pdf |
| Audible signal devices for use in hazardous locations | UGKZ_E12629.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) | |
|---|---|
| Audible signal appliance, general signal, certified for Canada | UCST7_E4813.pdf |
| Audible signal devices for use in hazardous locations certified for Canada | UGKZ7_E12629.pdf |
| Certified by CSA International | |
|---|---|
| Signal appliances, audible, for hazardous locations | 4818_02_1102495.pdf |
Specs
| Voltage | 120VAC 50/60Hz 240VAC 50/60Hz |
|---|---|
| Mount | Surface Panel |
| Operating Current | 0.18 Amps at 120VAC 0.09 Amps at 240VAC |
| Operating Temperature Min. | -65 F |
| Operating Temperature Max. | 150 F |
| Decibel Output | 100 at 10 Feet 110 at 1 Meter |
| Duty Cycle | Not rated for continuous duty |
| Enclosure Rating | Type 4X |
| Height | 4.53 IN |
| Width | 6.02 IN |
| Depth | 3.66 IN |
