500 Vibratone® Bell
- Vibrating mechanism
- Three gong sizes - four, six, or ten-inch
- A range of output available - 98 to 102dBa @ 10 ft. (108 to 112dBa @ 1m)
- Optional weatherproof backbox provides Type 3R enclosure
- UL and cUL Listed, CSA Certified, and FM Approved
Federal Signal's Vibratone® heavy duty bell product line utilizes a modular approach to combine gongs and mechanisms allowing for greater flexibility and selection. Three gong sizes are available; the Model A4 is four inches in diameter; the Model A6 is six inches in diameter; and the Model A10 is ten inches in diameter. Each larger gong produces a different tone and a higher dBa output.
Vibrating bells produce a continuous ringing sound when voltage is applied. The Models 500 and 600 vibrating mechanisms are designed for AC and DC operation, respectively.
The Models 500 and 600 are UL and cUL Listed, CSA Certified and FM Approved.
Federal Signal's Vibratone bells can be used in any industrial application, whether to signal danger or for start and dismissal. A variety of mounting accessories will accomodate almost any environment.
Special Considerations
- Specify mechanism and gong models
Models
| Part # |
Description |
Ship Weight |
Net Weight |
|
| 500-024-1 |
Vibrating bell mechanism, 24VAC |
1.1 lbs. |
1 lbs. |
Add to Quote > |
| 500-120-1 |
Vibrating bell mechanism, 120VAC |
1.1 lbs. |
1 lbs. |
Add to Quote > |
| 500-240-1 |
Vibrating bell mechanism, 240VAC |
1.1 lbs. |
1 lbs. |
Add to Quote > |
Accessories
Replacement Parts
| Description |
Part # |
|
| NO PARTS FOUND |
Agency
| Listed By Underwriter's Laboratory (ULus) |
| Audible signal appliance, general signal |
UCST_E4813.pdf |
| Listed By Underwriter's Laboratory For Use In Canada (cUL) |
| Audible signal appliance, general signal, certified for Canada |
UCST7_E4813.pdf |

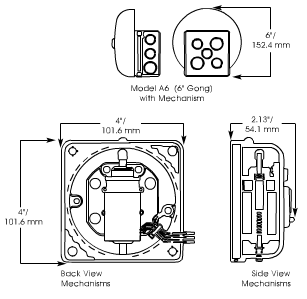

Diagrams
Specs
| Voltage |
24VAC
120VAC
240VAC |
| Mount |
Surface
Optional Weatherproof Backbox (Model WB) |
| Operating Current |
0.4 Amps at 24VAC
0.08 Amps at 120VAC
0.04 Amps at 240VAC |
| Enclosure Rating |
Type 3R when used with Weatherproof Backbox |
| Height |
4 IN |
| Width |
4 IN |
| Length |
2.125 IN |
