Audible Devices

50GCB SelecTone® Audible Signaling Device

  • Available in 24VAC/24VDC and 120VAC
  • Attractive round ceiling grille
  • Appropriate for office environments
  • Built in gain control
  • Produces 64dBa to 88dBa @ 10' (74dBa to 98dBa @ 1m)
  • Type 1, IP41 enclosure
  • UL and cUL Listed, CSFM Approved

Federal Signal's Model 50GCB SelecTone® Speaker Amplifier is designed to produce crisp, clear tones, digital voice messages and live public address. Designed to mount in ceilings, the 50GCB features a 7" white grille over a 4" speaker amplifier.

Internal gain control allows output adjustment from 64dBa to a maximum of 88dBa at 10 feet.

SelecTone Speaker Amplifiers are used individually or as part of a plant-wide emergency notification system. The Model UTM Universal Tone Module, with 32 tones, or the TM33 Custom Tone Module is plugged into a single SelecTone Speaker Amplifier for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.

For plant-wide signaling, a Connector Kit is installed into each SelecTone Speaker Amplifier and wired to a central controller, a SelecTone Command Unit or a CommCenter® Digital Message Center. SelecTone Command Units and CommCenter Digital Message Centers can broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Speaker Amplifiers.

The 50GCB is designed for areas without high ambient noise levels, such as offices, hallways and receptions areas. The baffle allows the four-inch speaker to be installed easily in any suspended ceiling plenum with a Model R4NB backbox. The white grill of the 50GCB is attractive in most decors.

Emergency signaling or paging are common applications for SelecTone.

Special Considerations

  • Specify Tone Module for stand alone operation
    • Universal Tone Module (UTM)
    • Custom Tone Module (TM33)
  • Specify Connector Kit for use in systems (Call us for system design assistance)
    • 25Vrms Connector Kit (AM25CK)
    • 70Vrms Connector Kit (AM70CK)

Models

Part # Description Ship Weight Net Weight
50GCB-024 SelecTone® sig., 24VAC/DC, round, ceiling mnt., white 2.3 lbs. 1.6 lbs. Add to Quote >
50GCB-120 SelecTone® sig., 120VAC, round, ceiling mnt., white 2.3 lbs. 1.6 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
R4NB Back box, ceiling speaker, 4" 2.5 lbs. Add to Quote >

Replacement Parts

Description Part #
NO PARTS FOUND

Agency

Listed By Underwriter's Laboratory (ULus)
Speakers UEAY-E4813.pdf
Audible signal appliance, general signal UCST_E4813.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf
Speakers certified for Canada UEAY7-E4813.pdf
Listed By California State Fire Marshall (CSFM)
Audible signal device 7135_0811_003.pdf

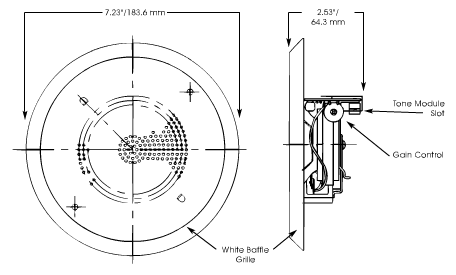

Diagrams

Specs

Voltage

24VDC

24VAC 50/60Hz

120VAC 50/60Hz

Mount Ceiling
Operating Current

0.09 Amps at 24VDC

0.29 Amps at 24VAC

0.04 Amps at 120VAC

Operating Temperature Min. -31 F
Operating Temperature Max. 161 F
Standby Current

0.025 Amps at 24VDC

0.095 Amps at 24VAC

0.027 Amps at 120VAC

Decibel Output

88 at 10 Feet

98 at 1 Meter

Enclosure Rating Type 1
Ingress Protection (IP) IP41
Depth 2.53 IN
Diameter 7.23 IN
