Audible Devices

A General Alarm Siren

  • Available with 120VAC/VDC universal motor
  • Rugged, durable and corrosion resistant
  • Maintenance-free
  • Produces 103dBa @ 10' (113dBa @ 1m)
  • Type 3R enclosure
  • UL and cUL Listed, FM Approved

The Federal Signal Model A is a general-purpose electro-mechanical siren that produces a distinctive sound and tonal quality for industrial applications. It has a high maximum pitch which provides excellent contrast to industrial ambient noise. Introduced in 1918, the Model A is still used today in many rugged and extreme environments and applications.

The Model A features a universal motor and operates with 120VAC or 125VDC. The fractional horsepower motor drives a ported aluminum rotor within the specially designed stator to produce a unique sound. A small internal fan cools the motor during operation. The recommended duty cycle is five minutes on/five minutes off. This siren produces an attention-getting 103dBa @ 10' (113dBa @ 1m) and 1060Hz at full R.P.M.

The Model A's metal housing is sealed with red powder coat for an attractive appearance and superior corrosion resistance. The swivel mount bracket accommodates wall and surface mount installations.

The Model A is UL and cUL Listed and FM Approved.

Models

Part # Description Ship Weight Net Weight
A-120 Siren, 120VAC/DC, electromechanical, red 11.6 lbs. 9 lbs. Add to Quote >

Accessories

Part # Description Ship Weight
NOT APPLICABLE

Replacement Parts

Description Part #
Rotor Assembly K8179A046-03 Add to Quote >
Motor Service Kit K8118052A Add to Quote >

Agency

Listed By Underwriter's Laboratory (ULus)
Audible signal appliance, general signal UCST_E4813.pdf
Listed By Underwriter's Laboratory For Use In Canada (cUL)
Audible signal appliance, general signal, certified for Canada UCST7_E4813.pdf
Factory Mutual (FM)
FM Approval Guide FM_Approval_Guide.pdf

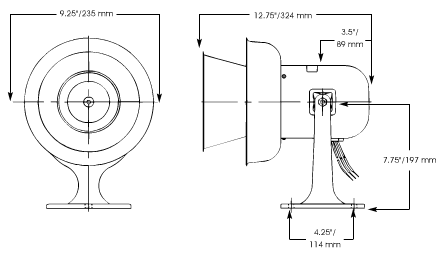

Diagrams

Specs

Voltage 120VAC/VDC
Mount

Wall

Surface

Operating Current 1.9 Amps
Motor Universal
Decibel Output

103 at 10 Feet

113 at 1 Meter

Frequency Response 1060Hz
Duty Cycle Five minutes on/five minutes off
Enclosure Rating Type 3R
Width 9.25 IN
Length 12.75 IN
